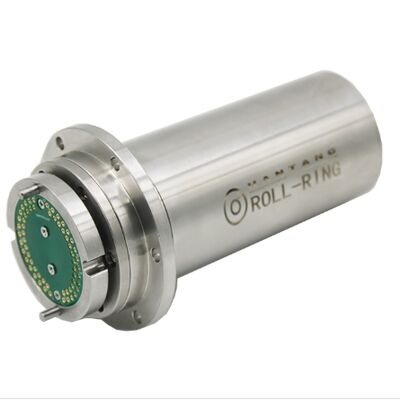

IP51 Waterproof Slip Ring 20 Circuits 3A Rotary Joint for Outdoor Monitor and Wind Turbine

IP51 Waterproof Slip Ring - 20 Circuits 3A Rotary Joint

Designed for outdoor monitors, wind turbines, and demanding test environments requiring long-term stable signal transmission.

Product Overview

The SP036020 slip ring features advanced gold-gold friction pair technology for minimal wear and extended operational lifespan. The nearly zero-pressure brush design significantly reduces friction, extending service life by up to 33% compared to conventional slip rings.

With a working life of up to 100 million revolutions, this slip ring ensures reliable performance in applications requiring continuous rotation and stable signal transmission.

Technical Specifications

Electrical Parameters

Mechanical Parameters

Outline Drawing

Technical Advantages

• Gold-Gold Friction Pair Technology: Advanced contact technology ensures ultra-long service life with minimal wear
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for more reliable electrical contact
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stable performance
• Advanced Brush Wire Technology: Nearly zero-pressure brush design extends slip ring life by 1/3
• High-Speed Capability: Maximum speed of 8000 RPM (with cooling system)
• Extended Lifespan: Maximum operational life of up to 100 million revolutions
