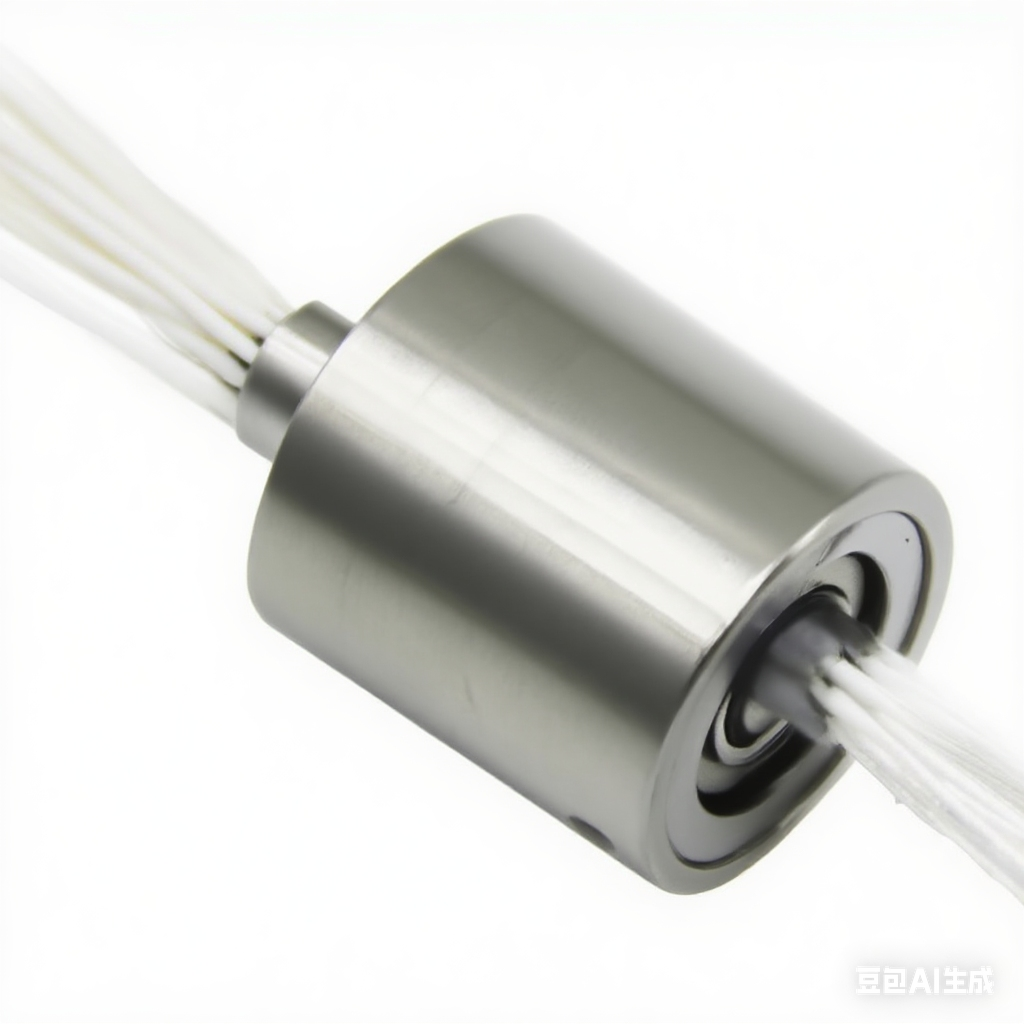

Low Electrical Noise Slip Ring 3000 RPM for Sensor Signal Transmission

1
MOQ
200-800USD
Price
Low Electrical Noise Slip Ring 3000 RPM for Sensor Signal Transmission
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0~3000 RPM
Design Loop: 20
Working Life: 10 Million~100 Million Circle
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -40℃ To 60℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: Alluminum Alloy/304 Stainless Steel/316L Stainless Steel
Highlight:

low noise slip ring for sensors

,

3000 RPM conductive slip ring

,

slip ring for signal transmission
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP036020
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Low Electrical Noise Slip Ring 3000 RPM for Sensor Signal Transmission
Designed for industrial-grade reliability, the SP036020 high-speed slip ring operates within a wide temperature range of -45°C to +60°C and features an IP51 protection rating. Its robust structure and precision-balanced design make it suitable for continuous rotation in demanding test environments requiring long-term stability.
Technical Parameters
Electrical Specifications
Design Loop 20
Insulation Resistance 200MΩ/250V/DC
Rated Voltage/Current 250VDC/3A
Dielectric Strength ≥250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 300 ± 20mm (optional)
Mechanical Specifications
Rated Speed 0~3000 rpm
Working Life 10 million~100 million rotations
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Aluminum alloy/304 stainless steel/316L stainless steel
Maximum Starting Torque 3.5N.cm
IP Grade IP51
Outline Drawing
Low Electrical Noise Slip Ring 3000 RPM for Sensor Signal Transmission 0
Technical Advantages
  • Core friction pair technology with gold metal contacts ensures ultra-long service life
  • Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
  • Advanced brush wire modulation with near-zero pressure design extends slip ring life by 1/3
  • High-speed capability up to 8000 RPM with cooling system
  • Exceptional lifespan up to 100 million rotations
