High Current Through Bore Slip Ring 40 Circuits 1A for Automation Equipment

1
MOQ
200-800USD
Price
High Current Through Bore Slip Ring 40 Circuits 1A for Automation Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-100 Rpm
Design Loop: ≤44
Working Life: 5 Million Rpm
Dynamic Resistance Change: ≤20mΩ
Working Temperature: -55℃ ~ 85℃
Maximum Current: 1A
Shell Material: Stainless Steel
Contact Material: Gold-gold
Highlight:

high current slip ring 40 circuits

,

through bore slip ring 1A

,

conductive slip ring for automation
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP016044
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description

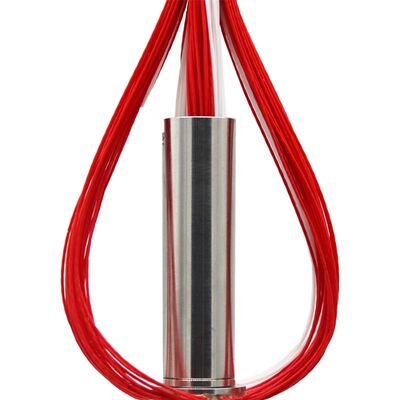

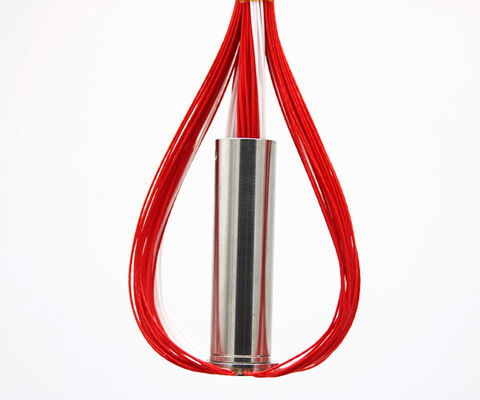

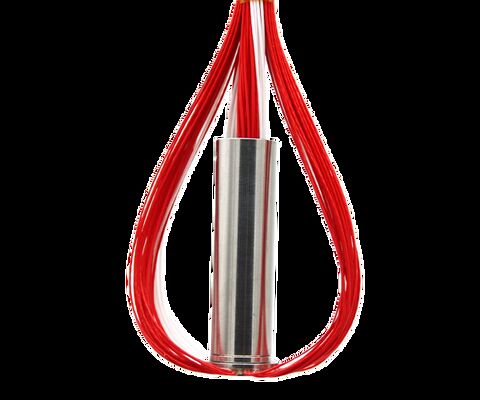

High Current Through Bore Slip Ring - 40 Circuits 1A for Automation Equipment
The SP016044 Series Miniature Slip Ring is engineered for high-reliability power and signal transmission in compact rotating systems. Supporting up to 44 circuits, this slip ring ensures stable electrical performance with minimal contact resistance variation and excellent environmental adaptability. Featuring stainless steel housing and gold-to-gold contact technology, it delivers superior durability and conductivity. The product operates reliably in extreme temperatures from -55°C to +85°C, making it ideal for aerospace, defense systems, stabilized platforms, UAVs, and precision instrumentation.
Electrical Specifications
Design Loop ≤44
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 48VDC /1A
Dielectric Strength >200VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Mechanical Specifications
Rated Speed 0-100 rpm
Working Life 5 million rpm
Operating Temperature -55℃ ~ 85℃
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.4 N.cm
Weight <20g (not include wire)
IP Grade IP51~IP68 optional
Outline Drawing
High Current Through Bore Slip Ring 40 Circuits 1A for Automation Equipment 0
Technical Advantages
  • Gold-gold contact provides high conductivity, excellent thermal conductivity, low temperature coefficient of resistance, with resistance to sulfurization, oxidation, and corrosive gases
  • Integrated casting process ensures concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for enhanced reliability
  • Precision component manufacturing with dimensional tolerance <0.01mm ensures high precision and stable contact
  • Near-zero pressure electric brush design extends slip ring life by one-third
  • Compact size and structure meets user space constraints
  • Integral stainless steel metal construction suitable for extremely harsh environments
