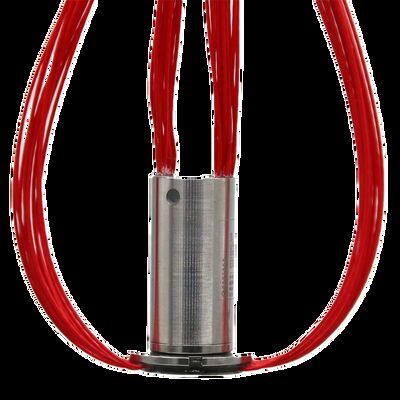

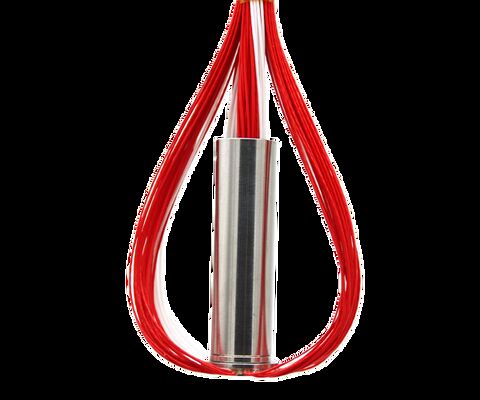

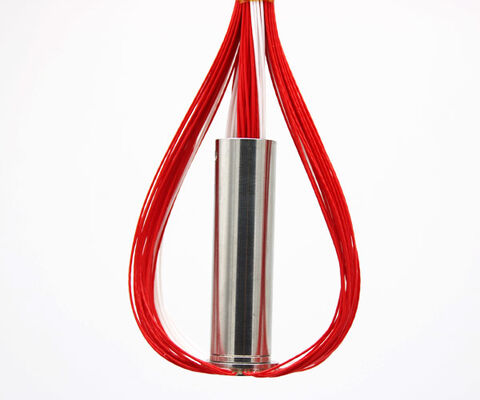

High-Speed Slip Ring for Test Platforms 44 Circuits 100RPM Long Life 5 Million Revolutions

SP016044 series slip rings are engineered for applications where installation space is limited but performance requirements remain demanding. Featuring a lightweight structure under 20g and a compact integrated stainless steel design, these slip rings enable stable transmission of power and signals while maintaining low starting torque. They are widely used in electro-optical systems, surveillance equipment, UAV gimbals, and radar antenna platforms.

• Gold-gold contact provides high conductivity, excellent thermal conductivity, low temperature coefficient of resistance, and features resistance to sulfurization, oxidation, and corrosive gases
• Superior hardness and wear resistance with excellent resistance to welding, arc corrosion, and burns
• Integrated casting process ensures concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology achieves slip ring contact surface smoothness of Ra0.02 for more reliable contact
• Precision component manufacturing process with dimensional tolerance <0.01mm for high precision and stable contact
• Near-zero pressure electric brush design and debugging process extends slip ring life by 1/3
• Compact size and structure meets user space constraints
• Integral stainless steel metal structure suitable for extremely harsh environments
