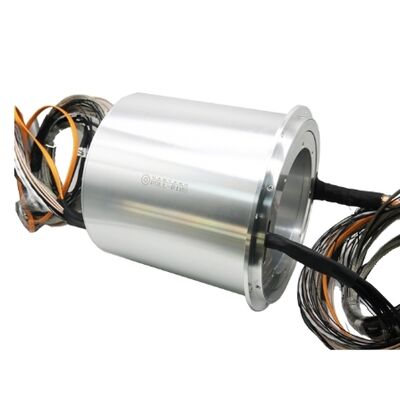

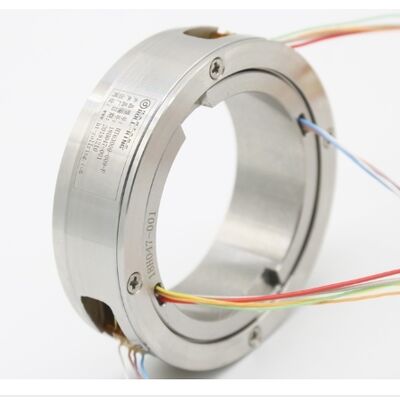

High precision Conductive Slip Ring designed for electrical connectivity in continuous rotation machinery used in industrial automation

1
MOQ
200-800USD
Price
High precision Conductive Slip Ring designed for electrical connectivity in continuous rotation machinery used in industrial automation
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0-100 Rpm
Design Loop: ≤44
Working Life: 5 Million Rpm
Dynamic Resistance Change: ≤20mΩ
Working Temperature: -55℃ ~ 85℃
Maximum Current: 1A
Shell Material: Stainless Steel
Contact Material: Gold-gold
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP016044
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
High precision Conductive Slip Ring designed for electrical connectivity in continuous rotation machinery used in industrial automation
Outline Drawing
High precision Conductive Slip Ring designed for electrical connectivity in continuous rotation machinery used in industrial automation 0

Precision-engineered conductive slip ring designed to ensure stable electrical performance in continuous rotation applications. Built for harsh environments with corrosion-resistant stainless steel construction and gold alloy contacts that resist oxidation, sulfurization, and chemical exposure.

Technical Specifications
Electrical Specifications
Design Loop ≤44
Insulation Resistance 250MΩ/250V/DC
Rated Voltage/Current 48VDC /1A
Dielectric Strength >200VAC/50Hz/60s
Dynamic Resistance Change Value ≤20mΩ
Mechanical Specifications
Rated Speed 0-100 rpm
Working Life 5 million rpm
Operating Temperature -55℃ ~ 85℃
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.4 N.cm
Weight <20g (not include wire)
IP Grade IP51~IP68 optional
Technical Advantages
  • Gold-gold contact provides high conductivity, excellent thermal conductivity, low temperature coefficient of resistance, with resistance to sulfurization, oxidation, and corrosive gases
  • Superior hardness and wear resistance with excellent resistance to welding, arc corrosion, and burns
  • Integrated casting process ensures concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror processing technology achieves contact surface smoothness of Ra0.02 for more reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm for high precision and stable contact
  • Near-zero pressure electric brush design extends slip ring life by 1/3
  • Compact size and structure meets space constraints in various applications
  • Integral stainless steel metal construction suitable for extremely harsh environments
