SP035018-A High Speed Slip Ring 18 Circuit 5000 RPM Electrical Slip Ring

The SP035018-A High Speed Slip Ring is a compact and reliable rotary electrical connector designed for stable power and signal transmission in high-speed rotating systems. Featuring 18 circuits, 5000 RPM operating speed, and a service life of up to 10 million revolutions, this miniature slip ring is ideal for industrial automation, testing equipment, robotics, and precision rotating machinery.

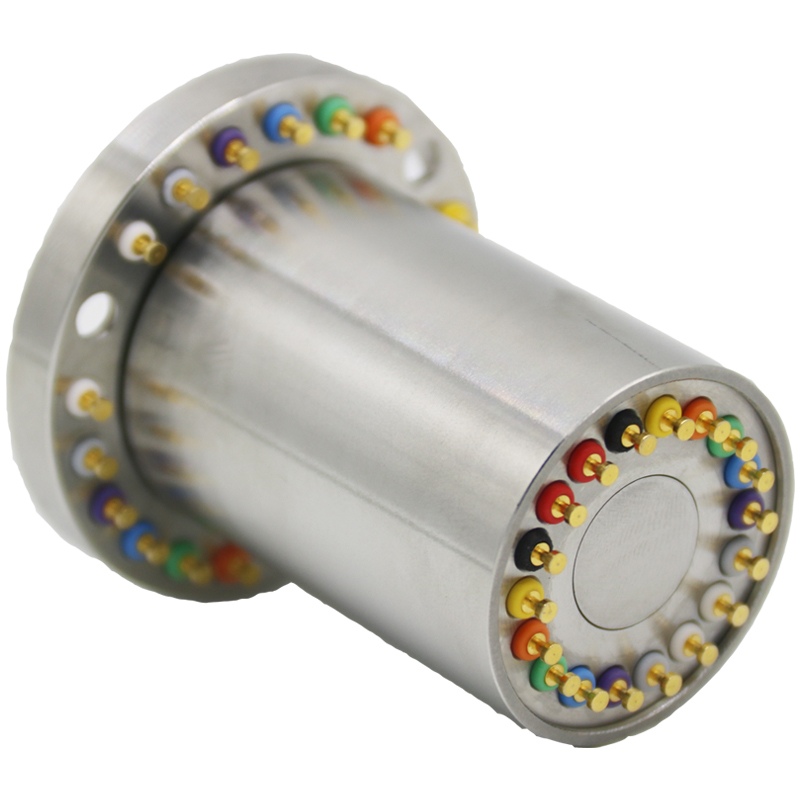

Unlike conventional designs, the SP035018-A adopts an innovative terminal connection structure with color-coded interfaces located directly on both the rotor and stator. This eliminates external lead wires, simplifies installation, reduces maintenance costs, and improves system integration efficiency.

Built with advanced gold-to-gold contact technology, the slip ring maintains an ultra-low dynamic resistance variation of ≤10mΩ, ensuring reliable signal transmission and minimal electrical noise. With 250MΩ insulation resistance, 300VAC dielectric strength, and 1A current capacity per channel, it delivers excellent electrical performance in demanding applications.

Technical parameters

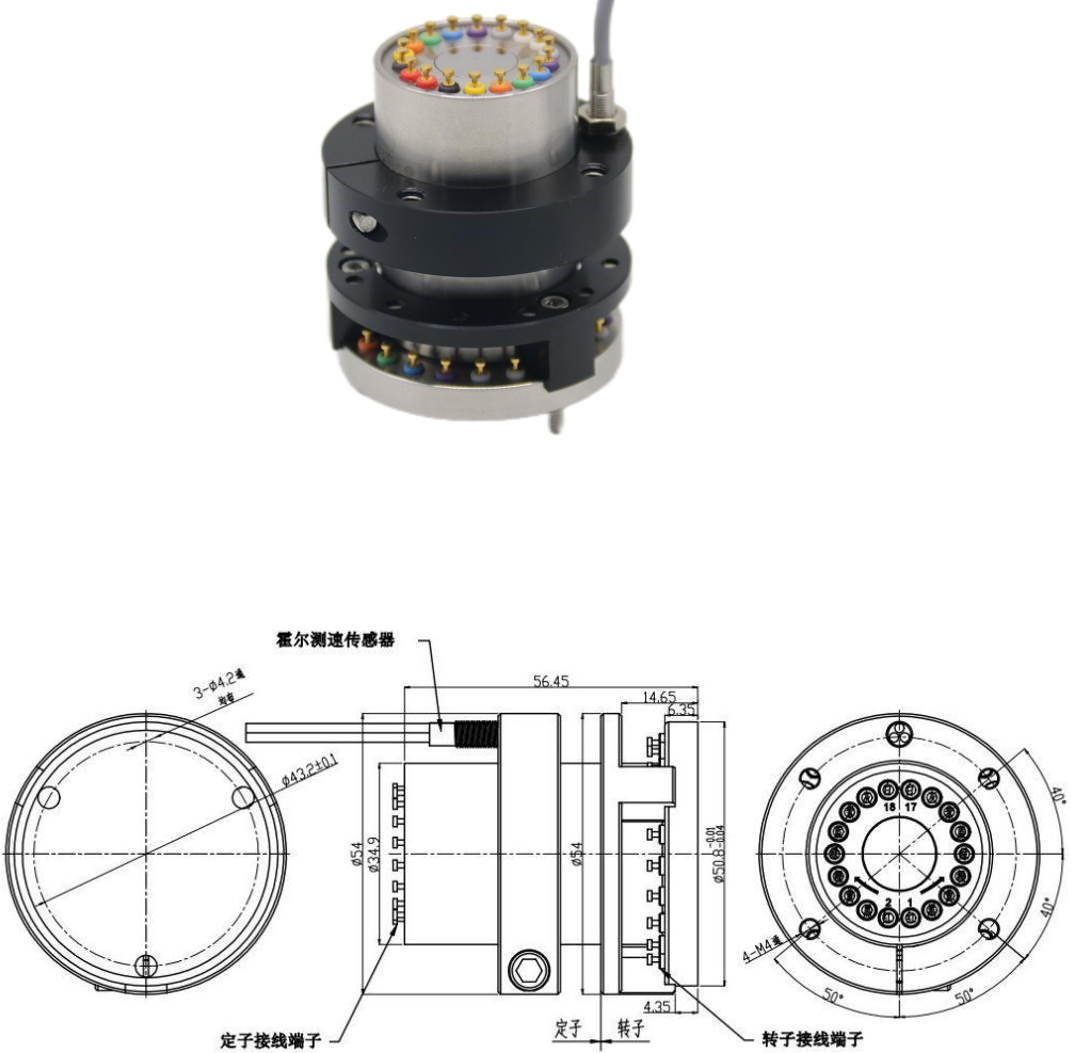

Outline Drawing

Typical Applications

The SP035018-A Mini High Speed Slip Ring is widely used in:

• Industrial Automation Equipment
• Robotics and Motion Control Systems
• Rotary Indexing Tables
• Packaging and Labeling Machines
• Automated Inspection Equipment
• Semiconductor Manufacturing Equipment
• Rotating Sensors and Monitoring Devices
• High-Speed Testing and Measurement Systems
• Smart Manufacturing Production Lines
• Aerospace and Defense Test Platforms
• Cable Reels and Rotating Machinery
• Speed Measurement and Encoder Systems

Why Choose SP035018-A?

With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments.

ü Color code recognition interface: easy to install
