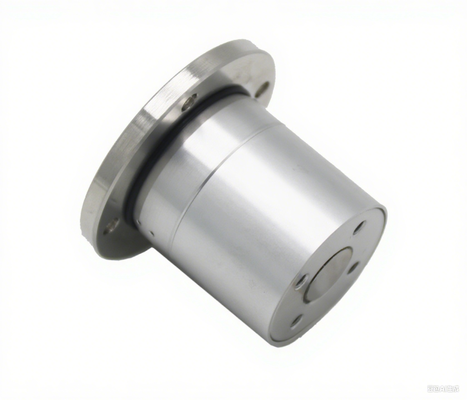

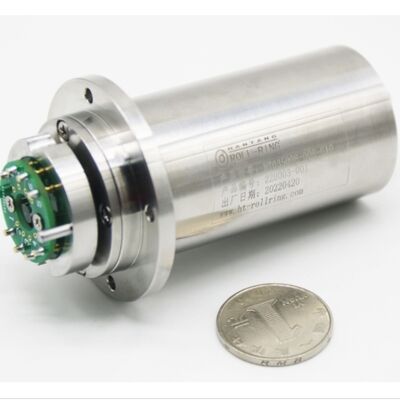

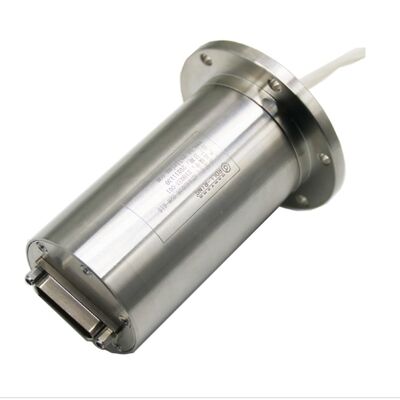

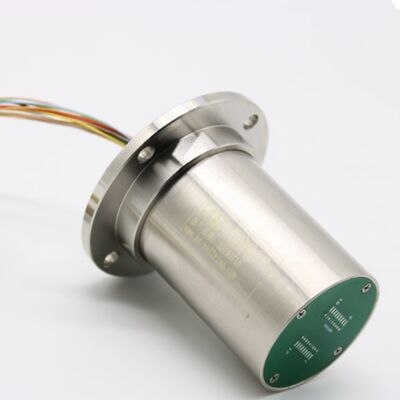

5000 RPM 18 Circuits Gold-Gold Contact Slip Ring for High-Speed Rotary Electrical Connector

1 piece
MOQ
200~800 USD
Price
5000 RPM 18 Circuits Gold-Gold Contact Slip Ring for High-Speed Rotary Electrical Connector
Features Gallery Product Description Chat Now
Features
Specifications
Channel: 18
Productname: Conductive Slip Ring
Protection Grade: IP51
Working Life: 10 Million Circle
Rated Speed: 5000 Rpm
Maximum Current: 1A
Housingmaterial: Stainless Steel
Application: Wind Turbines, Robotics, Medical Equipment, Radar Systems
Mountingtype: Flange, Through-bore, Or Shaft-mounted
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change: ≤10mΩ
Weight: ≤105g
Highlight:

5000 RPM gold-gold contact slip ring

,

high-speed rotary electrical connector

,

18 circuits conductive slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
SP035018-A Mini Electric Slip Ring - 5000 RPM

The SP035018-A Mini Electric Slip Ring is a compact rotary transmission device designed for stable transfer of power and signals in continuous rotation systems. It supports 18 circuits with a rated current of 1A per channel, making it suitable for multi-channel electrical and signal transmission applications.

With a maximum operating speed of 5000 RPM, this slip ring is designed for high-speed rotating equipment requiring reliable and consistent electrical performance.

Technical Specifications
Electrical Specifications
Design loop 18
Insulation resistance 250MΩ/250V/DC
Current 1A
Dielectric strength ≥300VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 5000 rpm
Working life 10 million circle
Operating temperature -40℃ ~ 80℃
Operating humidity 0～80%RH
Contact material Gold-gold
Shell material Stainless steel
Maximum starting torque 0.5N.cm
Weight ≤105g
IP grade IP51
Outline Drawing
SP035018-A Mini Electric Slip Ring outline drawing - front view SP035018-A Mini Electric Slip Ring outline drawing - side view
Typical Applications
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Rotary Indexing Tables
  • Packaging and Labeling Machines
  • Automated Inspection Equipment
  • Semiconductor Manufacturing Equipment
  • Rotating Sensors and Monitoring Devices
  • High-Speed Testing and Measurement Systems
  • Smart Manufacturing Production Lines
  • Aerospace and Defense Test Platforms
  • Cable Reels and Rotating Machinery
  • Speed Measurement and Encoder Systems
Why Choose SP035018-A?

With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.

Technical Advantages
  • Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
  • Advanced Brush Wire Technology: Nearly zero pressure brush design extends life by 1/3
  • Compact Design: Small size meets space-constrained requirements
  • Stainless Steel Structure: Durable construction suitable for harsh environments
  • Color Code Recognition: Easy installation with color-coded interfaces
