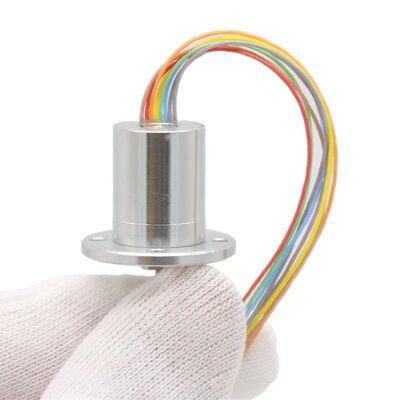

Gold Contact High Speed Slip Ring with 10 Million Revolutions Life and 5000 RPM for Industrial Automation

1 piece
MOQ
200~800 USD
Price
Gold Contact High Speed Slip Ring with 10 Million Revolutions Life and 5000 RPM for Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Channel: 18
Productname: Conductive Slip Ring
Protection Grade: IP51
Working Life: 10 Million Circle
Rated Speed: 5000 Rpm
Maximum Current: 1A
Housingmaterial: Stainless Steel
Application: Wind Turbines, Robotics, Medical Equipment, Radar Systems
Mountingtype: Flange, Through-bore, Or Shaft-mounted
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change: ≤10mΩ
Weight: ≤105g
Highlight:

gold contact slip ring

,

high speed slip ring 5000 RPM

,

industrial automation slip ring with warranty
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Gold Contact High Speed Slip Ring | 10 Million Revolutions Life Fast Delivery
SP035018-A mini slip ring is a precision-engineered rotary electrical connector designed for stable power and signal transmission in high-speed rotating systems. As a reliable 18 circuit slip ring, it is widely used in industrial automation, robotics, radar systems, and motion control equipment where continuous rotation is required.
This model supports a maximum speed of 5000 RPM, making it suitable for high-speed dynamic applications requiring low electrical noise and stable signal integrity.
High Precision Electrical Performance
The SP035018-A uses advanced gold-to-gold contact slip ring technology, ensuring stable conductivity and minimal signal loss during continuous rotation.
Key Electrical Parameters
  • 18-channel slip ring design
  • Rated current: 1A per circuit
  • Insulation resistance: 250MΩ / 250VDC
  • Dielectric strength: ≥300VAC / 50Hz / 60s
  • Dynamic contact resistance variation: ≤10mΩ
These features make it suitable for low noise signal transmission slip ring applications and precision control systems.
Technical Parameters
Electrical Specifications
Design loop 18
Insulation resistance 250MΩ/250V/DC
Current 1A
Dielectric strength ≥300VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 5000 rpm
Working life 10 million circle
Operating temperature -40℃ ~ 80℃
Operating humidity 0～80%RH
Contact material Gold-gold
Shell material Stainless steel
Maximum starting torque 0.5N.cm
Weight ≤105g
IP grade IP51
Outline Drawing
SP035018-A slip ring outline drawing and dimensions SP035018-A slip ring technical diagram and specifications
Typical Applications
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Rotary Indexing Tables
  • Packaging and Labeling Machines
  • Automated Inspection Equipment
  • Semiconductor Manufacturing Equipment
  • Rotating Sensors and Monitoring Devices
  • High-Speed Testing and Measurement Systems
  • Smart Manufacturing Production Lines
  • Aerospace and Defense Test Platforms
  • Cable Reels and Rotating Machinery
  • Speed Measurement and Encoder Systems
Why Choose SP035018-A?
With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.
Technical Advantages
  • Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
  • Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
  • Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
  • Precision component manufacturing process: dimensional tolerance < 0.01mm, axial displacement < 0.01mm, high precision, and more stable performance
  • Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
  • Small in size and compact in structure, it can meet the space constraints of users
  • Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments
  • Color code recognition interface: easy to install
