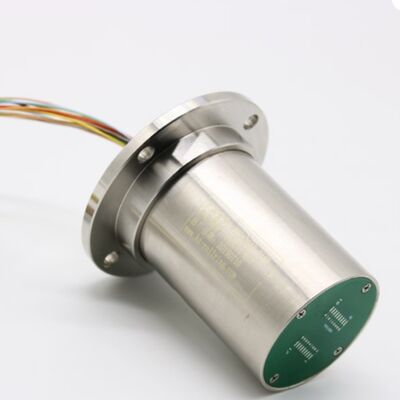

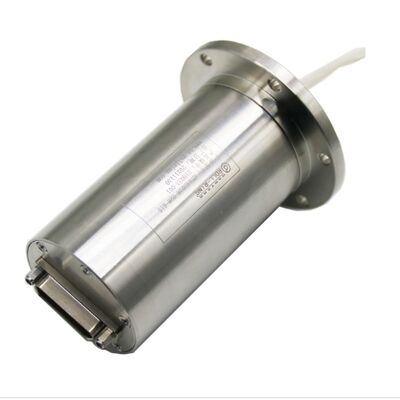

High Speed 5000 RPM 18 Circuits Gold-Gold Contact Conductive Slip Ring for Industrial Automation

1 piece
MOQ
200~800 USD
Price
High Speed 5000 RPM 18 Circuits Gold-Gold Contact Conductive Slip Ring for Industrial Automation
Features Gallery Product Description Chat Now
Features
Specifications
Channel: 18
Productname: Conductive Slip Ring
Protection Grade: IP51
Working Life: 10 Million Circle
Rated Speed: 5000 Rpm
Maximum Current: 1A
Housingmaterial: Stainless Steel
Application: Wind Turbines, Robotics, Medical Equipment, Radar Systems
Mountingtype: Flange, Through-bore, Or Shaft-mounted
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change: ≤10mΩ
Weight: ≤105g
Highlight:

5000 RPM conductive slip ring

,

18 circuits gold-gold contact slip ring

,

industrial automation conductive slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Cost-Effective High Speed Slip Ring Manufacturer 5000 RPM Electrical Slip Ring

The SP035018-A mini slip ring is a compact and high-performance rotary electrical connector designed for stable transmission of power and signals in continuous rotation systems. It supports 18 circuits, with a rated current of 1A per channel, making it suitable for multi-channel electrical and signal transmission applications in industrial automation and precision equipment.

This high speed slip ring 5000RPM is engineered for demanding dynamic environments where stable signal integrity and reliable electrical performance are required during continuous rotation.

Electrical Performance

The SP035018-A adopts gold-to-gold contact technology, ensuring low noise, stable conductivity, and long-term reliability.

  • Insulation resistance: 250M Ω / 250VDC
  • Dielectric strength: ≥ 300VAC / 50Hz / 60s
  • Dynamic resistance variation: ≤ 10mΩ

These features ensure stable signal transmission in industrial slip ring applications and precision motion systems.

Technical Specifications
Electrical Specifications
Design loop 18
Insulation resistance 250MΩ/250V/DC
Current 1A
Dielectric strength ≥300VAC/50Hz/60s
Dynamic resistance change value ≤10mΩ
Mechanical Specifications
Rated speed 5000 rpm
Working life 10 million circle
Operating temperature -40℃ ~ 80℃
Operating humidity 0～80%RH
Contact material Gold-gold
Shell material Stainless steel
Maximum starting torque 0.5N.cm
Weight ≤105g
IP grade IP51
Outline Drawing
SP035018-A mini slip ring outline drawing - front view SP035018-A mini slip ring outline drawing - side view
Typical Applications
Industrial Automation Equipment
Robotics and Motion Control Systems
Rotary Indexing Tables
Packaging and Labeling Machines
Automated Inspection Equipment
Semiconductor Manufacturing Equipment
Rotating Sensors and Monitoring Devices
High-Speed Testing and Measurement Systems
Smart Manufacturing Production Lines
Aerospace and Defense Test Platforms
Cable Reels and Rotating Machinery
Speed Measurement and Encoder Systems
Why Choose SP035018-A?

With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.

Technical Advantages
  • Friction pair technology: Gold metal contact technology, ensuring an ultra long service life.
  • Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.
  • Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.
  • Precision component manufacturing process: dimensional tolerance < 0.01mm, axial displacement < 0.01mm, high precision, and more stable performance.
  • Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.
  • Compact design: Small in size and compact in structure, it can meet the space constraints of users.
  • Stainless steel structure: Sturdy and durable, with strong sealing, suitable for extremely harsh environments.
  • Color code recognition interface: Easy to install and identify connections.
