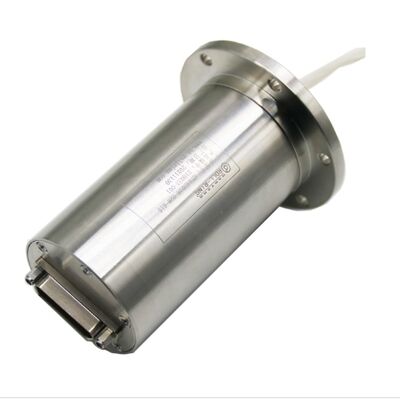

IP51 Miniature Slip Ring with Gold-to-Gold Contact Technology for 5000 RPM Applications

1 piece
MOQ
200~800 USD
Price
IP51 Miniature Slip Ring with Gold-to-Gold Contact Technology for 5000 RPM Applications
Features Gallery Product Description Chat Now
Features
Specifications
Channel: 18
Productname: Conductive Slip Ring
Protection Grade: IP51
Working Life: 10 Million Circle
Rated Speed: 5000 Rpm
Maximum Current: 1A
Housingmaterial: Stainless Steel
Application: Wind Turbines, Robotics, Medical Equipment, Radar Systems
Mountingtype: Flange, Through-bore, Or Shaft-mounted
Dielectric Strength: ≥300VAC/50Hz/60s
Dynamic Resistance Change: ≤10mΩ
Weight: ≤105g
Highlight:

IP51 miniature slip ring

,

gold-to-gold contact slip ring

,

5000 RPM conductive slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP035018-A
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1~3 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
IP51 Miniature Slip Ring with Gold-to-Gold Contact Technology
Designed for demanding environments, the SP035018-A high-speed slip ring ensures reliable operation under 5000 RPM with insulation resistance of 250MΩ and dielectric strength ≥300VAC for safe electrical performance.
Technical Parameters
Electrical Specifications
Design Loop 18
Insulation Resistance 250MΩ/250V/DC
Current 1A
Dielectric Strength ≥300VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Mechanical Specifications
Rated Speed 5000 rpm
Working Life 10 million cycles
Operating Temperature -40℃ ~ 80℃
Operating Humidity 0～80%RH
Contact Material Gold-gold
Shell Material Stainless steel
Maximum Starting Torque 0.5N.cm
Weight ≤105g
IP Grade IP51
Outline Drawing
SP035018-A slip ring outline drawing - front view SP035018-A slip ring outline drawing - side view
Typical Applications
  • Industrial Automation Equipment
  • Robotics and Motion Control Systems
  • Rotary Indexing Tables
  • Packaging and Labeling Machines
  • Automated Inspection Equipment
  • Semiconductor Manufacturing Equipment
  • Rotating Sensors and Monitoring Devices
  • High-Speed Testing and Measurement Systems
  • Smart Manufacturing Production Lines
  • Aerospace and Defense Test Platforms
  • Cable Reels and Rotating Machinery
  • Speed Measurement and Encoder Systems
Why Choose SP035018-A?
With its high rotational speed, compact structure, long service life, and stable signal transmission performance, the SP035018-A High Speed Slip Ring is an ideal solution for engineers and OEM manufacturers seeking reliable rotary electrical connections in space-constrained and high-performance applications.
Technical Advantages
  • Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra-long service life
  • Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
  • Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
  • Precision component manufacturing process: dimensional tolerance < 0.01mm, axial displacement < 0.01mm, high precision, and more stable performance
  • Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
  • Small in size and compact in structure, it can meet the space constraints of users
  • Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments
  • Color code recognition interface: easy to install
