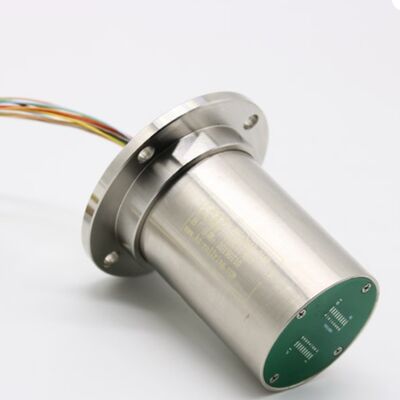

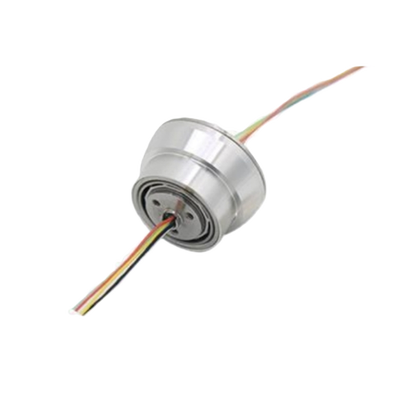

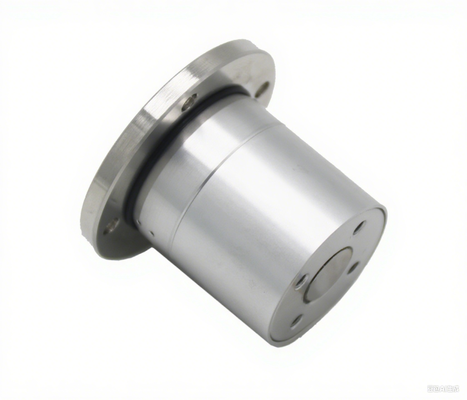

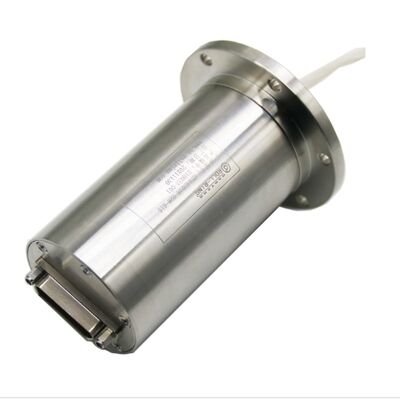

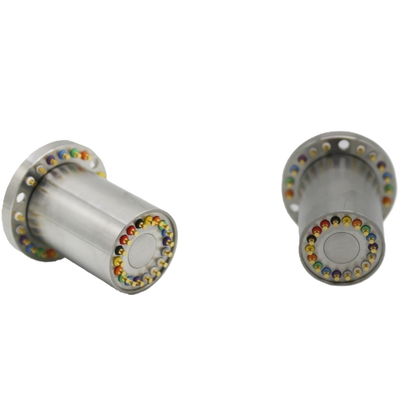

Miniature Slip Ring 12 Circuits 2A Compact Rotary Electrical Connector for CCTV Robot Wind Turbine Equipment

1 Piece
MOQ
USD 15-80 / Piece
Price
Miniature Slip Ring 12 Circuits 2A Compact Rotary Electrical Connector for CCTV Robot Wind Turbine Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

Compact 12 Circuit Design

,

Gold-Gold Contact Technology

,

Low Electrical Noise Transmission
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-2A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-20 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 10000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits 2A – Compact Rotary Electrical Connector

Product Overview

The WNRLN MSR-12C-2A Miniature Slip Ring is a high-performance compact rotary connector designed to transmit power, signals and data between stationary and rotating components. With 12 independent circuits rated at 2A, this slip ring delivers consistent and reliable electrical transmission in space-constrained applications such as CCTV cameras, robotic arms, wind turbines and medical equipment.

Key Features

  • Compact 12-Circuit Design: Integrates 12 independent power and signal channels in a miniature form factor, ideal for tight installation spaces.
  • Gold-Gold Contact Technology: Premium gold-plated rings and brushes ensure minimal contact resistance, superior conductivity and extended service life.
  • Low Electrical Noise Transmission: Advanced contact structure reduces electrical noise to microvolt levels, ensuring clean signal integrity for data-sensitive applications.
  • Wide Temperature Range: Reliable operation from -40°C to +80°C, suitable for indoor and outdoor environments.
  • Maintenance-Free Operation: Self-lubricating gold contacts require no routine maintenance over the rated service life.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Insulation Resistance≥500MΩ at 500VDC
Contact MaterialGold to Gold
Housing MaterialEngineering Plastic (POM)
Operating Speed0-300 rpm
Operating Temperature-40°C to +80°C
Protection GradeIP54
Lead Wire Length300mm (customizable)
Bore SizeThrough-bore 12.7mm

Applications

  • CCTV & Surveillance: Continuous 360° pan-tilt rotation for security cameras without cable tangling.
  • Robotics: Reliable signal and power transmission in robot arm joints and end-effectors.
  • Wind Turbines: Pitch control systems requiring dependable rotary electrical connections.
  • Medical Equipment: CT scanners and diagnostic imaging systems with rotating gantries.
  • Test & Measurement: Rotary test benches and inspection turntables.

Customization Options

We offer flexible customization including circuit count (6, 12, 18, 24), current rating, housing material (aluminum alloy available), IP rating upgrades, and custom lead wire lengths. Contact our engineering team with your specific requirements.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% continuity and insulation testing before shipment
  • 12-month warranty on all standard products
