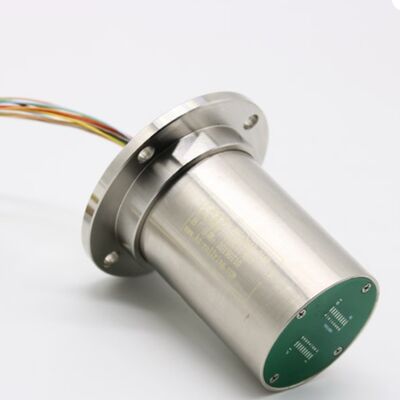

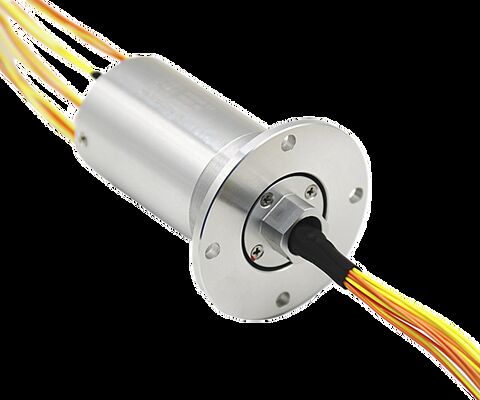

Miniature Slip Ring 18 Circuits 2A Multi-Channel Rotary Electrical Connector for Industrial Robot Arm Joint

1 Piece
MOQ
USD 20-90 / Piece
Price
Miniature Slip Ring 18 Circuits 2A Multi-Channel Rotary Electrical Connector for Industrial Robot Arm Joint
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 18
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

18 Circuit Multi-Channel

,

Gold-Gold Contact Technology

,

Stable Signal Transmission
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-18C-2A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-20 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 8000 Pieces per Month
Product Description

Miniature Slip Ring 18 Circuits 2A – Multi-Channel Rotary Electrical Connector

Product Overview

The WNRLN MSR-18C-2A Miniature Slip Ring integrates 18 independent circuits in a compact rotary connector, designed for industrial robot arm joints that require simultaneous transmission of power and multiple sensor signals. Gold-gold contact technology ensures each channel maintains consistent electrical performance throughout the full 360° rotation range.

Key Features

  • 18 Circuit Multi-Channel: Eighteen independent channels support complex signal routing in a single compact unit.
  • Gold-Gold Contact Technology: Premium contacts minimize resistance variation across all circuits during rotation.
  • Stable Signal Transmission: Each circuit maintains consistent contact resistance under dynamic operating conditions.
  • Through-Bore Design: 12.7mm center bore accommodates shaft mounting or cable pass-through.

Technical Specifications

ParameterValue
Number of Circuits18
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Insulation Resistance≥500MΩ at 500VDC
Contact MaterialGold to Gold
Operating Speed0-300 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • Industrial Robot Arms: Multi-axis joints requiring power and encoder feedback signals.
  • Automated Test Equipment: Rotary test fixtures with numerous sensor channels.
  • Packaging Machinery: Continuous rotary filling and capping stations.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% multi-channel continuity testing
