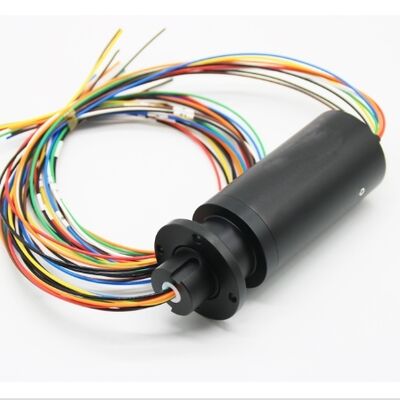

Miniature Slip Ring 24 Circuits 2A High Density Rotary Electrical Connector for Medical CT Scanner Gantry

1 Piece
MOQ
USD 30-120 / Piece
Price
Miniature Slip Ring 24 Circuits 2A High Density Rotary Electrical Connector for Medical CT Scanner Gantry
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 24
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-250 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

24 Circuit High Density

,

Gold-Gold Contact Technology

,

Medical Grade Reliability
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-24C-2A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Pieces per Month
Product Description

Miniature Slip Ring 24 Circuits 2A – High Density Rotary Connector

Product Overview

The WNRLN MSR-24C-2A Miniature Slip Ring packs 24 independent circuits into a compact rotary connector, engineered for medical CT scanner gantry systems demanding high channel density. Each circuit is rated at 2A with gold-gold contacts delivering consistent performance across all channels throughout the rotation cycle.

Key Features

  • 24 Circuit High Density: Maximum circuit count in a miniature package for data-intensive rotating applications.
  • Gold-Gold Contact Technology: Premium gold contacts maintain signal integrity under continuous rotation.
  • Medical Grade Reliability: Stringent manufacturing and testing protocols meet medical equipment standards.
  • Low Crosstalk Design: Optimized circuit layout minimizes inter-channel interference.

Technical Specifications

ParameterValue
Number of Circuits24
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Insulation Resistance≥500MΩ at 500VDC
Contact MaterialGold to Gold
Operating Speed0-250 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • Medical CT Scanners: Rotating gantry signal and power transmission.
  • Industrial Inspection: Multi-sensor rotary inspection systems.
  • Radar Antennas: Continuous rotation with multiple signal lines.

Quality Assurance

  • ISO 9001:2015 certified facility
  • CE and RoHS compliant
  • 100% 24-channel continuity and insulation testing
Tag:

miniature slip ring

small slip ring

micro slip ring
