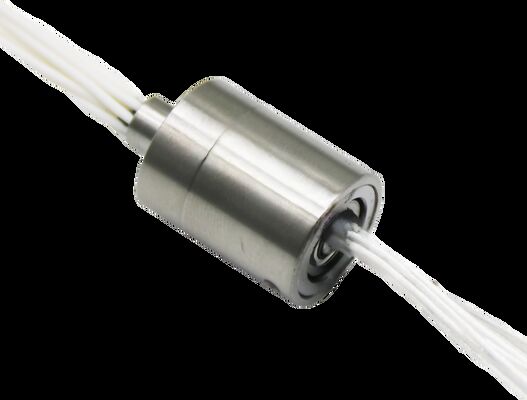

Miniature Slip Ring 12 Circuits 5A High Current Rotary Electrical Connector for Wind Turbine Pitch Control

1 Piece
MOQ
USD 25-100 / Piece
Price
Miniature Slip Ring 12 Circuits 5A High Current Rotary Electrical Connector for Wind Turbine Pitch Control
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 5A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥1000V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

12 Circuit 5A Rating

,

Gold-Gold Contact Technology

,

High Current Capability
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-5A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-20 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 8000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits 5A – High Current Rotary Connector

Product Overview

The WNRLN MSR-12C-5A Miniature Slip Ring upgrades current capacity to 5A per circuit while maintaining 12 independent channels. Designed for wind turbine pitch control systems, this rotary connector uses aluminum alloy housing for enhanced heat dissipation and gold-gold contacts for reliable high-current transmission.

Key Features

  • 12 Circuit 5A Rating: Each of 12 circuits handles up to 5A continuous current in a compact package.
  • Gold-Gold Contact Technology: Premium gold-plated contacts ensure low contact resistance at higher currents.
  • High Current Capability: Aluminum alloy housing provides superior thermal management for sustained operation.
  • Enhanced Insulation: 1000V dielectric strength for reliable isolation between circuits.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current5A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥1000V AC at 50Hz
Insulation Resistance≥500MΩ at 500VDC
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-300 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • Wind Turbines: Pitch control motor power and feedback signal transmission.
  • Heavy Robotics: Joint actuators requiring higher current drive.
  • Rotary Tables: Industrial indexing tables with motor power and sensor integration.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% high-current load testing on every circuit
Tag:

miniature slip ring

small slip ring

micro slip ring
