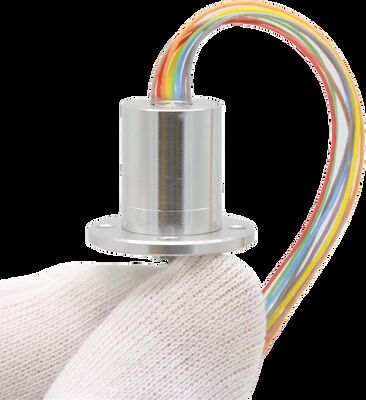

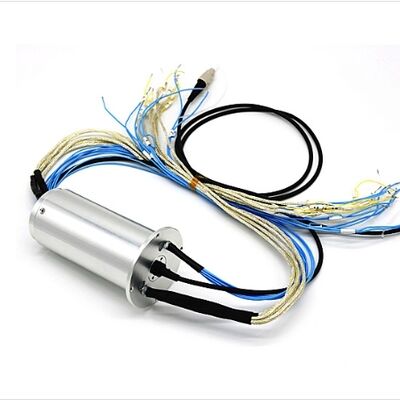

Miniature Slip Ring 6 Circuits 10A Heavy Duty Rotary Electrical Connector for Packaging Machine Turntable

1 Piece
MOQ
USD 18-85 / Piece
Price
Miniature Slip Ring 6 Circuits 10A Heavy Duty Rotary Electrical Connector for Packaging Machine Turntable
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 6
Rated Current: 10A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥1500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Operating Speed: 0-250 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Highlight:

6 Circuit 10A Heavy Duty

,

Gold-Gold Contact Technology

,

Robust Power Transmission
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-6C-10A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-20 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 8000 Pieces per Month
Product Description

Miniature Slip Ring 6 Circuits 10A – Heavy Duty Rotary Connector

Product Overview

The WNRLN MSR-6C-10A Miniature Slip Ring is engineered for heavy-duty industrial applications requiring 10A current capacity per circuit. Six independent power channels with robust gold-gold contacts and an aluminum alloy housing make it suitable for packaging machine turntables and continuous-duty rotary equipment.

Key Features

  • 6 Circuit 10A Heavy Duty: Each circuit delivers 10A continuous current for motor drives and heating elements.
  • Gold-Gold Contact Technology: Heavy-duty gold-plated contacts maintain low resistance under sustained load.
  • Robust Power Transmission: 1500V dielectric strength and aluminum housing ensure safe high-power operation.
  • Industrial Durability: Designed for continuous 24/7 operation in factory environments.

Technical Specifications

ParameterValue
Number of Circuits6
Rated Current10A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥1500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-250 rpm
Protection GradeIP54

Applications

  • Packaging Machines: Rotary turntable motor and heater power transmission.
  • Filling Equipment: Continuous rotary filling stations.
  • Capping Machines: High-torque rotary capping heads.

Quality Assurance

  • ISO 9001:2015 certified facility
  • CE and RoHS compliant
  • 100% full-load endurance testing
