Home /Products/Mini Slip Ring/Miniature Slip Ring 12 Circuits 2A Aluminum Alloy Housing Rotary Connector for Outdoor Surveillance Camera

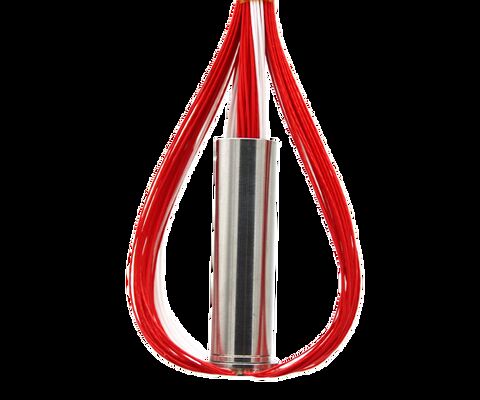

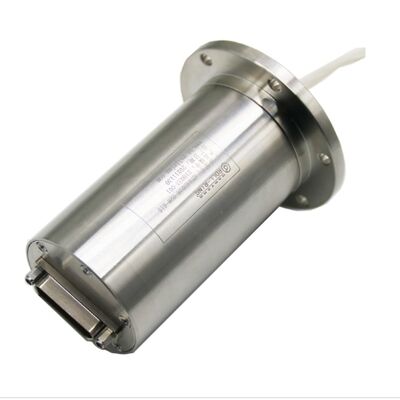

Miniature Slip Ring 12 Circuits 2A Aluminum Alloy Housing Rotary Connector for Outdoor Surveillance Camera

1 Piece
MOQ
USD 18-85 / Piece
Price
Miniature Slip Ring 12 Circuits 2A Aluminum Alloy Housing Rotary Connector for Outdoor Surveillance Camera
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP65
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

Aluminum Alloy Housing

,

Gold-Gold Contact Technology

,

Outdoor Rated Durability
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-2A-AL
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-20 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 8000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits 2A – Aluminum Alloy Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-AL Miniature Slip Ring features a rugged aluminum alloy housing with IP65 protection for outdoor surveillance camera installations. Twelve independent 2A circuits with gold-gold contacts deliver reliable power and video signal transmission in harsh outdoor environments.

Key Features

  • Aluminum Alloy Housing: Durable metal body provides superior heat dissipation and mechanical strength.
  • Gold-Gold Contact Technology: Premium contacts resist oxidation for long outdoor service life.
  • Outdoor Rated Durability: IP65 protection against dust and water jets for all-weather operation.
  • Corrosion Resistant: Anodized aluminum surface treatment for extended outdoor service.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-300 rpm
Protection GradeIP65
Lead Wire Length300mm (customizable)

Applications

  • Outdoor Surveillance: PTZ cameras in exposed outdoor locations.
  • Marine Equipment: Rotary connectors on shipboard systems.
  • Outdoor Advertising: Rotating billboard power and lighting control.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • IP65 water jet and dust ingress testing on every unit
Tag:

miniature slip ring

small slip ring

micro slip ring
