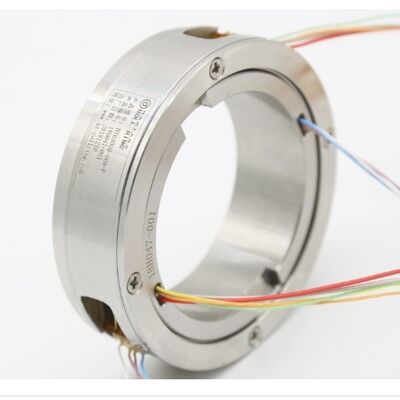

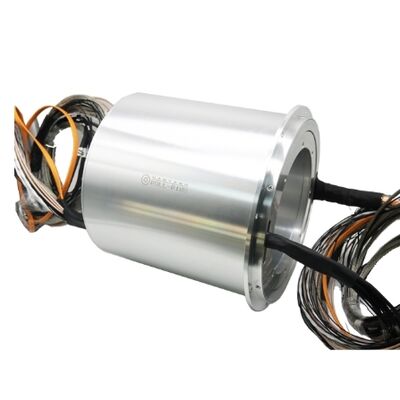

Miniature Slip Ring 12 Circuits 2A High Speed 500rpm Rotary Electrical Connector for Test Bench Equipment

1 Piece
MOQ
USD 30-120 / Piece
Price
Miniature Slip Ring 12 Circuits 2A High Speed 500rpm Rotary Electrical Connector for Test Bench Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-500 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bearing Type: Precision Ball Bearing
Highlight:

High Speed 500rpm Rating

,

Gold-Gold Contact Technology

,

Precision Bearing System
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-2A-HS
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits 2A – High Speed 500rpm Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-HS Miniature Slip Ring is engineered for high-speed applications up to 500 rpm, combining a precision ball bearing system with gold-gold contacts for stable 2A transmission. Ideal for test bench equipment, dynamometers and rotary measurement systems requiring reliable electrical connections at elevated rotation speeds.

Key Features

  • High Speed 500rpm Rating: Maintains stable electrical performance at continuous speeds up to 500 rpm.
  • Gold-Gold Contact Technology: Premium contacts minimize speed-related resistance variation.
  • Precision Bearing System: Low-runout ball bearings ensure smooth high-speed rotation.
  • Low Vibration Design: Balanced rotor assembly minimizes vibration at maximum rated speed.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Operating Speed0-500 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • Test Benches: Rotary dynamometer and torque measurement systems.
  • Centrifuges: Laboratory and industrial centrifuge power transmission.
  • High-Speed Cameras: 360° rotating camera platforms.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% rated-speed dynamic testing on every unit
