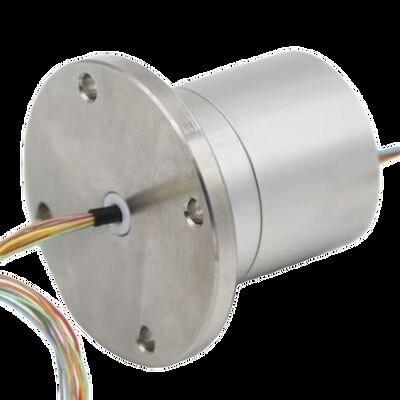

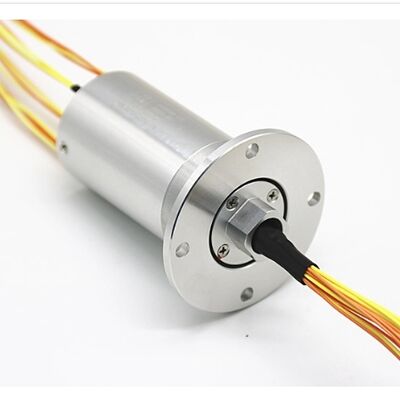

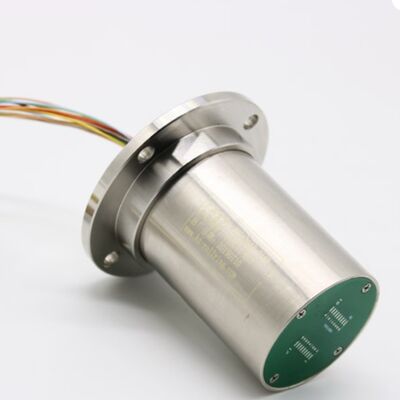

Ultra Miniature Capsule Slip Ring 12 Circuits 2A Micro Rotary Electrical Connector for Drone Gimbal Camera

1 Piece
MOQ
USD 25-100 / Piece
Price
Ultra Miniature Capsule Slip Ring 12 Circuits 2A Micro Rotary Electrical Connector for Drone Gimbal Camera
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 150mm (customizable)
Outer Diameter: 15.5mm
Highlight:

Ultra Compact Capsule Design

,

Gold-Gold Contact Technology

,

Micro Drone Gimbal Application
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-2A-CAP
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Pieces per Month
Product Description

Ultra Miniature Capsule Slip Ring 12 Circuits 2A – Micro Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-CAP Ultra Miniature Capsule Slip Ring pushes miniaturization to the extreme with a 15.5mm outer diameter while still providing 12 independent 2A circuits. Designed specifically for drone gimbal cameras, this capsule-type slip ring offers gold-gold contact reliability in the smallest possible package for weight-sensitive aerial applications.

Key Features

  • Ultra Compact Capsule Design: 15.5mm diameter cylindrical form factor for extreme space constraints.
  • Gold-Gold Contact Technology: Micro gold-plated contacts deliver consistent FPV video signal quality.
  • Micro Drone Gimbal Application: Optimized for lightweight drone camera stabilization systems.
  • Minimal Weight: Under 30g total weight minimizes impact on drone flight performance.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialEngineering Plastic (POM)
Operating Speed0-300 rpm
Protection GradeIP54
Lead Wire Length150mm (customizable)
Outer Diameter15.5mm

Applications

  • Drone Gimbals: 3-axis camera stabilization with continuous 360° rotation.
  • Wearable Cameras: Compact rotating camera modules.
  • Micro Robotics: Miniature joint actuators in small robotic systems.

Quality Assurance

  • ISO 9001:2015 certified facility
  • CE and RoHS compliant
  • 100% continuity testing under rotation
Tag:

miniature slip ring

small slip ring

micro slip ring
