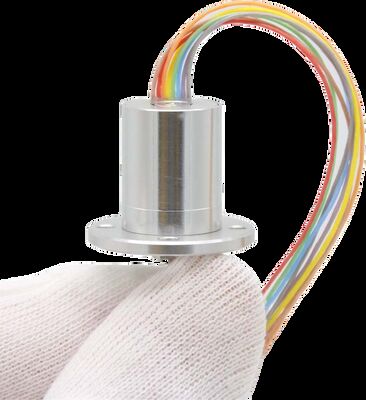

Miniature Slip Ring 36 Circuits 2A Maximum Density Rotary Electrical Connector for Multi Axis CNC Machine

1 Piece
MOQ
USD 40-150 / Piece
Price
Miniature Slip Ring 36 Circuits 2A Maximum Density Rotary Electrical Connector for Multi Axis CNC Machine
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 36
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Operating Speed: 0-200 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

36 Circuit Max Density

,

Gold-Gold Contact Technology

,

Multi Axis CNC Compatible
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-36C-2A
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Pieces per Month
Product Description

Miniature Slip Ring 36 Circuits 2A – Maximum Density Rotary Connector

Product Overview

The WNRLN MSR-36C-2A Miniature Slip Ring represents the pinnacle of circuit density with 36 independent 2A channels in a single compact rotary connector. Engineered for multi-axis CNC machine tool applications, this slip ring handles complex sensor arrays, actuator controls and feedback signals with gold-gold contact reliability across every circuit.

Key Features

  • 36 Circuit Max Density: Industry-leading 36 circuits for the most demanding signal routing requirements.
  • Gold-Gold Contact Technology: Premium gold contacts on all 36 channels for consistent low-resistance connections.
  • Multi Axis CNC Compatible: Supports complex machine tool rotary axis with full sensor integration.
  • Aluminum Alloy Housing: Robust housing with precision machining for stable multi-channel operation.

Technical Specifications

ParameterValue
Number of Circuits36
Rated Current2A per circuit
Rated Voltage240V AC/DC
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-200 rpm
Protection GradeIP54
Lead Wire Length300mm (customizable)

Applications

  • CNC Machine Tools: Multi-axis rotary tables with full sensor and actuator integration.
  • Automated Inspection: Multi-sensor rotary scanning and measurement systems.
  • Semiconductor Equipment: Wafer handling robots with extensive signal requirements.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% 36-channel continuity and insulation testing before shipment
