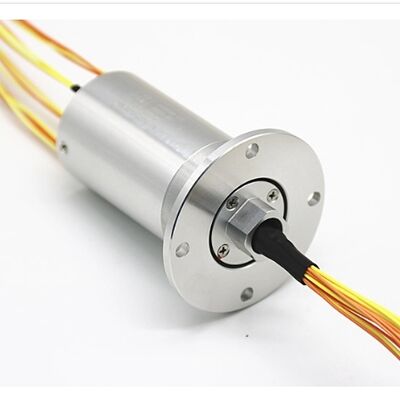

Miniature Slip Ring 12 Circuits Hybrid Power Signal Rotary Electrical Connector for Automated Guided Vehicle AGV

1 Piece
MOQ
USD 22-90 / Piece
Price
Miniature Slip Ring 12 Circuits Hybrid Power Signal Rotary Electrical Connector for Automated Guided Vehicle AGV
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12 (4 Power + 8 Signal)
Rated Current: 5A Power Circuits, 2A Signal Circuits
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥1000V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Operating Speed: 0-250 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Highlight:

Hybrid Power Signal Design

,

Gold-Gold Contact Technology

,

AGV Rotary Joint Solution
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-HYB
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 6000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits Hybrid – Power & Signal Rotary Connector

Product Overview

The WNRLN MSR-12C-HYB Miniature Slip Ring features a hybrid circuit design with 4 dedicated power channels rated at 5A and 8 signal channels rated at 2A, all integrated in a single compact rotary connector. Engineered for AGV automated guided vehicles, this slip ring handles motor drive power and sensor feedback signals simultaneously with gold-gold contact reliability.

Key Features

  • Hybrid Power Signal Design: Separate power and signal channels in one unit eliminate the need for multiple connectors.
  • Gold-Gold Contact Technology: Premium contacts on all circuits ensure clean signal integrity alongside power delivery.
  • AGV Rotary Joint Solution: Purpose-designed for automated guided vehicle steering and lifting mechanisms.
  • Enhanced Isolation: 1000V dielectric strength with dedicated shielding between power and signal groups.

Technical Specifications

ParameterValue
Number of Circuits12 (4 Power + 8 Signal)
Rated Current5A power / 2A signal
Rated Voltage240V AC/DC
Dielectric Strength≥1000V AC at 50Hz
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Operating Speed0-250 rpm
Protection GradeIP54

Applications

  • AGV Vehicles: Steering motor power and encoder feedback signal transmission.
  • Forklift Attachments: Rotating fork and clamp power with sensor integration.
  • Automated Warehousing: Rotary lift mechanisms with motor and sensor circuits.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% power and signal circuit group testing on every unit
