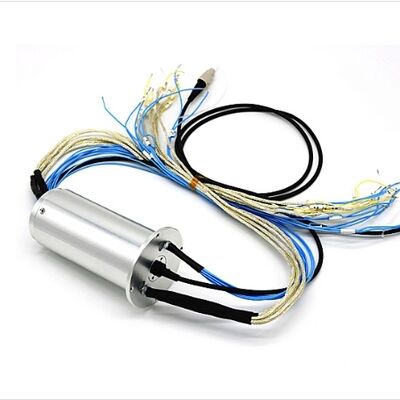

Miniature Slip Ring 12 Circuits Ethernet Compatible Rotary Electrical Connector for IP PTZ Network Camera

1 Piece
MOQ
USD 28-110 / Piece
Price
Miniature Slip Ring 12 Circuits Ethernet Compatible Rotary Electrical Connector for IP PTZ Network Camera
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Ethernet Support: 100Mbps (2 Pairs Dedicated)
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-250 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Highlight:

Ethernet Signal Compatible

,

Gold-Gold Contact Technology

,

IP Camera PTZ Solution
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-ETH
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits Ethernet Compatible – IP Camera Rotary Connector

Product Overview

The WNRLN MSR-12C-ETH Miniature Slip Ring is engineered for IP PTZ network cameras requiring stable Ethernet transmission through a rotating joint. Two dedicated differential pairs support 100Mbps Ethernet while remaining circuits handle camera power and control signals, all with gold-gold contact reliability.

Key Features

  • Ethernet Signal Compatible: Optimized impedance on dedicated pairs for 100Mbps data transmission.
  • Gold-Gold Contact Technology: Premium contacts minimize insertion loss variation during rotation.
  • IP Camera PTZ Solution: Integrated power, control and Ethernet in a single rotary connector.
  • Low Crosstalk: Shielded channel groups prevent Ethernet signal interference with power circuits.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Ethernet Support100Mbps (2 pairs)
Dielectric Strength≥500V AC at 50Hz
Contact MaterialGold to Gold
Operating Speed0-250 rpm
Protection GradeIP54

Applications

  • IP PTZ Cameras: Network cameras requiring 360° continuous pan rotation.
  • Video Conferencing: Motorized rotating camera systems.
  • Remote Monitoring: Network-connected rotating surveillance platforms.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • Ethernet eye-diagram testing under rotation
Tag:

miniature slip ring

small slip ring

micro slip ring
