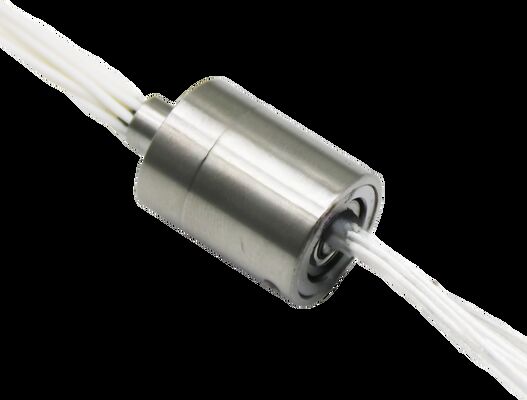

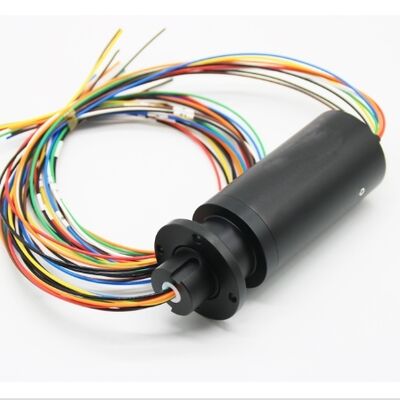

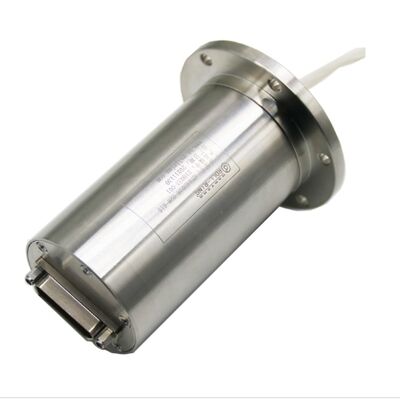

Miniature Slip Ring 24 Circuits 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot

1 Piece
MOQ
USD 35-140 / Piece
Price
Miniature Slip Ring 24 Circuits 2A Aluminum Housing High Density Rotary Connector for Semiconductor Wafer Robot
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 24
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Aluminum Alloy
Seal Type: Labyrinth Seal
Operating Speed: 0-200 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm (customizable)
Bore Size: Through-bore 12.7mm
Highlight:

24 Circuit Aluminum Housing

,

Gold-Gold Contact Technology

,

Semiconductor Cleanroom Compatible
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-24C-2A-AL
Payment & Shipping Terms
Packaging Details: WNRLN branded cleanroom-grade packaging with anti-static foam insert, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Pieces per Month
Product Description

Miniature Slip Ring 24 Circuits 2A – Aluminum Housing High Density Rotary Connector

Product Overview

The WNRLN MSR-24C-2A-AL Miniature Slip Ring combines 24 high-density circuits with a robust aluminum alloy housing, engineered for semiconductor wafer handling robots operating in cleanroom environments. Gold-gold contacts on all 24 channels ensure ultra-reliable signal transmission for precision automation systems.

Key Features

  • 24 Circuit Aluminum Housing: High-density design in a durable metal body for industrial automation.
  • Gold-Gold Contact Technology: Premium contacts provide consistent performance in cleanroom conditions.
  • Semiconductor Cleanroom Compatible: Labyrinth seal minimizes particle generation for ISO Class 5 environments.
  • Low Outgassing Materials: Selected materials meet semiconductor industry contamination standards.

Technical Specifications

ParameterValue
Number of Circuits24
Rated Current2A per circuit
Rated Voltage240V AC/DC
Contact MaterialGold to Gold
Housing MaterialAluminum Alloy
Seal TypeLabyrinth seal
Operating Speed0-200 rpm
Protection GradeIP54

Applications

  • Wafer Handling Robots: Precision rotary joints in semiconductor fabrication.
  • Cleanroom Automation: Rotary positioning systems in controlled environments.
  • LCD Panel Handling: Rotating end-effectors in display manufacturing.

Quality Assurance

  • ISO 9001:2015 certified manufacturing facility
  • CE and RoHS compliant
  • 100% particle count verification and circuit testing
