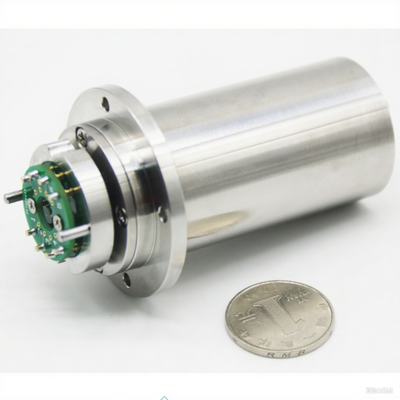

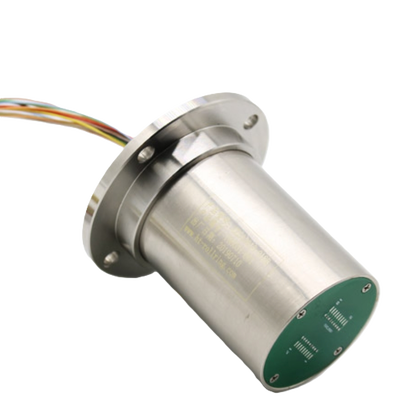

Miniature Slip Ring 3 Circuits 30A High Power Rotary Electrical Connector for Electric Vehicle Charging Turntable

1 Piece
MOQ
USD 35-150 / Piece
Price
Miniature Slip Ring 3 Circuits 30A High Power Rotary Electrical Connector for Electric Vehicle Charging Turntable
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 3
Rated Current: 30A Per Circuit
Rated Voltage: 600V AC/DC
Dielectric Strength: ≥2500V AC At 50Hz
Insulation Resistance: ≥1000MΩ At 1000VDC
Contact Material: Gold To Gold (Heavy Duty)
Housing Material: Aluminum Alloy With Heat Sink
Operating Speed: 0-100 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Highlight:

30A High Power Rating

,

Gold-Gold Contact Technology

,

EV Charging Turntable Compatible
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-3C-30A
Payment & Shipping Terms
Packaging Details: WNRLN branded heavy-duty box with anti-static foam insert, export-grade corrugated carton
Delivery Time: 5-7 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 3000 Pieces per Month
Product Description

Miniature Slip Ring 3 Circuits 30A – High Power Rotary Connector

Product Overview

The WNRLN MSR-3C-30A Miniature Slip Ring delivers exceptional 30A current capacity per circuit across 3 independent channels, engineered for electric vehicle charging turntables and high-power rotary applications. Heavy-duty gold-gold contacts with aluminum alloy heat-sink housing ensure reliable high-current transmission with effective thermal management.

Key Features

  • 30A High Power Rating: Each of 3 circuits handles 30A continuous current with generous safety margin.
  • Gold-Gold Contact Technology: Heavy-duty gold-plated contacts maintain low resistance under sustained high current.
  • EV Charging Turntable Compatible: Designed for the emerging EV charging infrastructure market.
  • Integrated Heat Sink Housing: Aluminum housing with thermal fins for effective passive cooling.

Technical Specifications

ParameterValue
Number of Circuits3
Rated Current30A per circuit
Rated Voltage600V AC/DC
Dielectric Strength≥2500V AC at 50Hz
Contact MaterialGold to Gold (Heavy Duty)
Housing MaterialAluminum Alloy with Heat Sink
Operating Speed0-100 rpm
Protection GradeIP54

Applications

  • EV Charging Turntables: Rotating platforms for electric vehicle positioning.
  • Welding Positioners: High-current rotary welding fixtures.
  • Crane Rotating Platforms: Power transmission for rotating crane booms.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% full-load 30A endurance testing on every circuit
Tag:

miniature slip ring

small slip ring

micro slip ring
