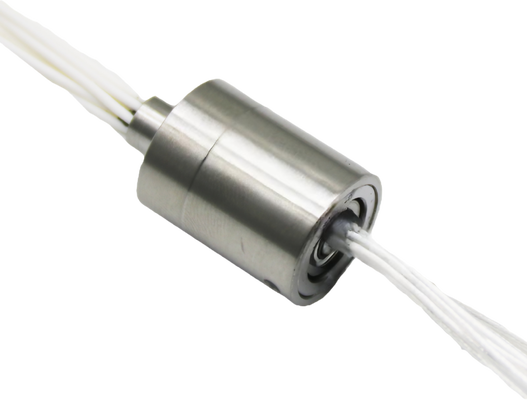

Miniature Slip Ring 12 Circuits 2A Modular Separate Rotor Stator Rotary Connector for Custom OEM Integration

1 Piece
MOQ
USD 20-90 / Piece
Price
Miniature Slip Ring 12 Circuits 2A Modular Separate Rotor Stator Rotary Connector for Custom OEM Integration
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Circuits: 12
Rated Current: 2A Per Circuit
Rated Voltage: 240V AC/DC
Design Type: Separate Rotor And Stator
Dielectric Strength: ≥500V AC At 50Hz
Insulation Resistance: ≥500MΩ At 500VDC
Contact Material: Gold To Gold
Housing Material: Engineering Plastic (POM)
Operating Speed: 0-300 Rpm
Operating Temperature: -40°C To +80°C
Protection Grade: IP54
Lead Wire Length: 300mm Both Sides (customizable)
Highlight:

Modular Separate Design

,

Gold-Gold Contact Technology

,

Flexible OEM Integration
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: WNRLN
Certification: ISO 9001:2015, CE, RoHS
Model Number: MSR-12C-2A-MOD
Payment & Shipping Terms
Packaging Details: WNRLN branded box with anti-static foam insert for rotor and stator, export-grade corrugated carton
Delivery Time: 3-5 working days for stock, 15-25 days for production
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 5000 Pieces per Month
Product Description

Miniature Slip Ring 12 Circuits 2A – Modular Separate Rotor Stator Rotary Connector

Product Overview

The WNRLN MSR-12C-2A-MOD Miniature Slip Ring features a unique modular design with separate rotor and stator assemblies, providing maximum installation flexibility for custom OEM equipment integration. Twelve independent 2A circuits with gold-gold contacts allow designers to mount the rotor and stator independently to suit unique machine geometries.

Key Features

  • Modular Separate Design: Independent rotor and stator assemblies for flexible machine integration.
  • Gold-Gold Contact Technology: Premium contacts ensure reliable electrical connection in any mounting orientation.
  • Flexible OEM Integration: Ideal for custom equipment where standard form factors cannot be used.
  • Easy Assembly: Simple snap-fit mechanism reduces installation time during production.

Technical Specifications

ParameterValue
Number of Circuits12
Rated Current2A per circuit
Rated Voltage240V AC/DC
Design TypeSeparate Rotor and Stator
Contact MaterialGold to Gold
Housing MaterialEngineering Plastic (POM)
Operating Speed0-300 rpm
Protection GradeIP54
Lead Wire Length300mm both sides

Applications

  • Custom OEM Equipment: Unique machine designs requiring non-standard slip ring configurations.
  • Prototype Development: Flexible integration for R&D and proof-of-concept builds.
  • Retrofit Projects: Adding rotary connections to existing equipment with space constraints.

Quality Assurance

  • ISO 9001:2015 certified manufacturing
  • CE and RoHS compliant
  • 100% assembly-fit and continuity testing
Tag:

miniature slip ring

small slip ring

micro slip ring
