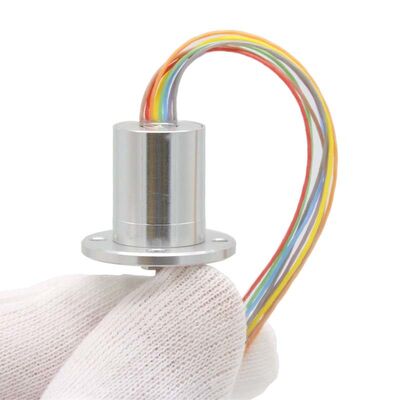

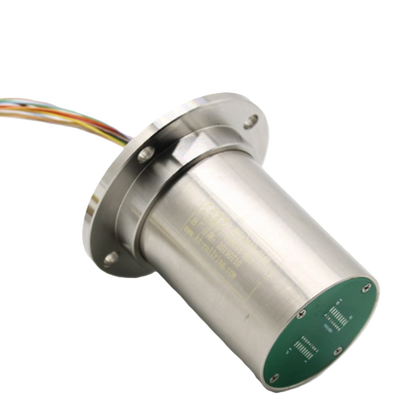

High Speed Miniature Slip Ring 6 Circuit 1000 RPM Rotary Electrical Connector for Centrifuge Testing Equipment Spindles

High Speed Miniature Slip Ring - 1000 RPM

The MSR-HS06 is a high-speed miniature slip ring engineered for continuous operation at 1000 RPM. Featuring premium high-speed precision ball bearings and gold-gold alloy contacts, this rotary connector delivers stable electrical performance in centrifuges, high-speed test equipment, and motor spindles where standard slip rings would fail.

Key Features

• 1000 RPM Continuous Duty - Rated for sustained high-speed operation without degradation
• High-Speed Precision Bearings - ABEC-5 grade ball bearings for minimal vibration at speed
• Stainless Steel Housing - Superior structural integrity for centrifugal force resistance
• Stable Contact at Speed - Gold-gold contacts maintain ≤15mΩ noise even at 1000 RPM
• 6 Independent Circuits - 2A per circuit for power and signal transmission

Typical Applications

• Laboratory centrifuges and separators
• High-speed motor test benches
• Turbine instrumentation slip rings
• Dynamic balancing machines
• Rotary fatigue testing equipment

Built for Speed

Standard slip rings typically max out at 250-300 RPM. The MSR-HS06 uses specially selected materials and precision manufacturing to triple that limit. Each unit undergoes a 4-hour burn-in test at maximum rated speed before shipment. Custom higher RPM configurations available for specialized applications.
