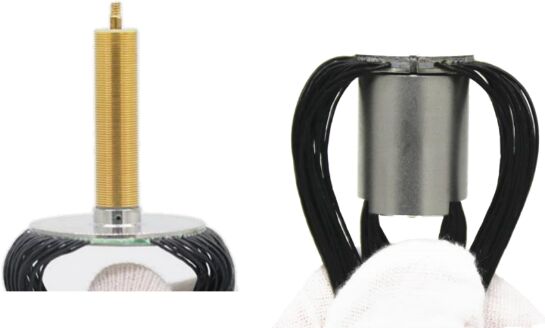

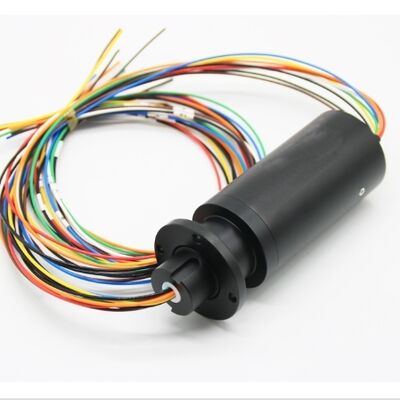

Through Bore Conductive Slip Ring 25mm Hole Diameter 12 Circuits 2A Gold-Gold Contact Industrial Rotary Joint

Through Bore Conductive Slip Ring CBSR-TB-25-12

The CBSR-TB-25-12 through bore conductive slip ring features a 25mm central hole diameter, allowing hydraulic, pneumatic, or shaft passage through the center while transmitting 12 independent electrical circuits. Engineered with premium gold-on-gold contacts, this rotary joint delivers exceptionally low electrical noise (≤10mΩ) and reliable signal integrity across a wide range of industrial applications.

Key Features

• 25mm Through Bore Design — Central hole accommodates shafts, tubing, or cabling for integrated mechanical-electrical systems
• 12 Independent Circuits — Each circuit rated 2A at 240V AC/DC, supporting simultaneous power and signal transmission
• Gold-on-Gold Contacts — Premium contact material ensures minimal contact resistance, low electrical noise, and extended operational life beyond 100 million revolutions
• Industrial Grade Construction — Aluminum alloy housing with precision ball bearings for smooth, maintenance-free rotation up to 300 RPM
• Wide Temperature Range — Reliable operation from -40°C to +80°C, suitable for harsh industrial environments

Applications

Ideal for packaging machinery, wind turbine pitch control, rotary index tables, robotic arms, cable reels, surveillance systems, and industrial automation equipment requiring both signal and power transmission through a rotating interface.

Technical Specifications

Why Choose CENO Slip Rings?

With over 15 years of manufacturing expertise, CENO delivers precision-engineered conductive slip rings backed by ISO 9001:2015 quality management. Every unit undergoes 100% electrical testing before shipment. Custom configurations including mixed current ratings, signal integration, and special connector types are available upon request.
