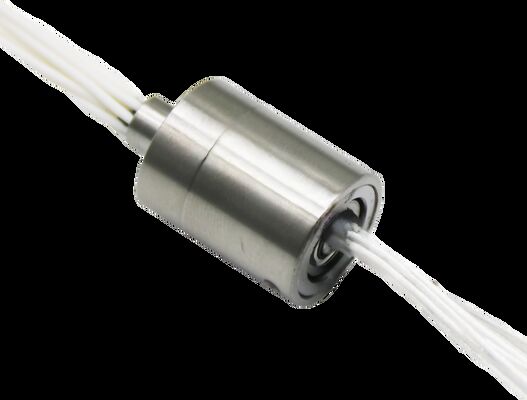

Miniature Conductive Slip Ring 8mm Outer Diameter 6 Circuits 1A Micro Gold Contact Rotary Connector for UAV Drones

Miniature Conductive Slip Ring CBSR-MN-8-6

The CBSR-MN-8-6 is our smallest conductive slip ring, featuring an astonishingly compact 8mm outer diameter while packing 6 independent 1A circuits. This micro rotary connector is engineered for applications where every millimeter counts — from UAV camera gimbals to medical endoscope rotation systems. Gold-on-gold contacts ensure stable, low-noise signal transmission despite the miniature form factor.

Key Features

• 8mm Ultra-Compact Diameter — The smallest footprint in our conductive slip ring lineup, ideal for micro-scale rotating assemblies
• 6 Independent Circuits at 1A — Surprising channel density for such a compact package, supporting multiple signal and low-power lines
• Gold-on-Gold Contact System — Ensures consistent contact resistance and reliable performance throughout the product lifespan
• Ultra-Lightweight at 5g — Minimal mass addition perfect for weight-sensitive UAV and drone applications
• AWG 30 Fine Wire Leads — Flexible color-coded PTFE-insulated lead wires for easy integration into compact assemblies

Applications

Purpose-designed for UAV camera gimbals, FPV drone pan mechanisms, micro robotic joints, medical endoscopes, dental handpiece rotors, miniature inspection cameras, and laboratory instrumentation requiring reliable 360-degree electrical connection in the smallest possible package.

Technical Specifications
