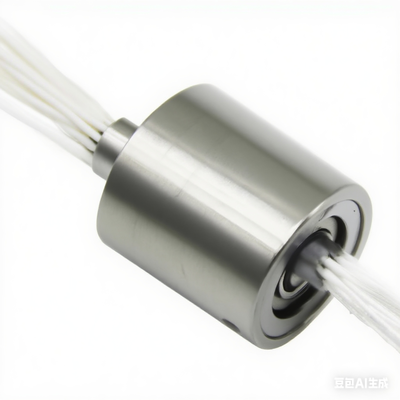

Multi Circuit Conductive Slip Ring 48 Channels 2A Modular Stackable Design Mixed Signal Rotary Joint for Automation

Multi-Circuit Conductive Slip Ring CBSR-MC-48

The CBSR-MC-48 multi-circuit conductive slip ring delivers exceptional channel density with 48 independent 2A circuits in a single modular assembly. Built on a stackable disc architecture, this rotary joint allows circuit count expansion and supports mixed signal types — including power, analog, digital, CAN Bus, RS-232, and RS-485 — making it the ultimate solution for complex automation systems requiring numerous simultaneous rotating electrical connections.

Key Features

• 48 Independent Channels — High-density design maximizes circuit count while maintaining compact overall dimensions for space-efficient integration
• Modular Stackable Architecture — Disc-based modular design enables easy circuit count customization by adding or removing modules to match exact application requirements
• Mixed Signal Compatibility — Simultaneously transmits power (2A), analog signals, digital I/O, and industrial communication protocols through dedicated isolated channels
• Gold-on-Gold Contact Standard — Premium contact material throughout all 48 circuits ensures consistent performance and long service life
• Flexible Wire Gauge Options — AWG 22-28 lead wires available per circuit based on current and signal requirements

Applications

Purpose-designed for multi-station rotary index tables, complex robotic workcell end-of-arm tooling, automated packaging lines, semiconductor wafer handling equipment, printing press rotary unions, medical CT scanner gantries, and any automation system demanding high-density rotating electrical connectivity with mixed signal types.

Technical Specifications
