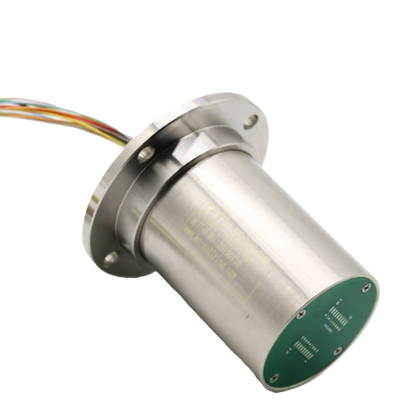

UAV Gimbal Payload Slip Ring 60 Circuits 15000 RPM Aluminum Alloy Gold Contact for Electro Optical Pod

SP056060-UAV High-Speed Slip Ring for UAV Gimbal Payload System

Product Overview

The SP056060-UAV high-speed slip ring features 60 circuits, gold-gold contacts, and operates stably at >15000 rpm with a long service life of 50 million circle. Engineered for uav gimbal payload system, it ensures reliable power and signal transmission in demanding environments. Its aluminum alloy housing provides excellent sealing and durability, making it suitable for continuous high-speed rotation applications. OEM and customization options are available to meet specific project requirements.

Technical Specifications

Applications

The SP056060-UAV is widely deployed in:

• UAV Gimbal Payload System: Precision signal and power transmission for critical systems
• High-speed testing platforms for aerospace and industrial R&D
• Laboratory and industrial precision measurement systems
• Strain gauge and thermocouple signal acquisition

Technical Advantages

1. Gold-Gold Contact Technology: 99.99% pure gold plating ensures ultra-long service life and stable electrical performance
2. Precision Concentricity: Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
3. Mirror Surface Finish: Contact surface smoothness reaches Ra0.02 for reliable contact and reduced friction
4. Ultra-Precision Manufacturing: Dimensional tolerance < 0.01mm (ISO 2768 H grade) for high precision
5. Near-Zero Pressure Brush Design: Extends service life by 33% through reduced mechanical wear
6. Rugged Aluminum alloy Construction: Strong sealing and durability for demanding environments

Outline Drawing

Why Choose Our High-Speed Slip Rings

• Proven high-speed performance with extensive field validation
• Long operational life with minimal maintenance requirements
• Precision manufacturing and strict quality testing
• OEM support and fast technical response
• Factory-direct supply with stable quality and competitive pricing
