Home /Products/High Speed Slip Ring/SP040028-G05 High Speed Slip Ring 24 Channels 18000 RPM Gold-Gold Contact IP65 for Automotive Wheel Hub Testing

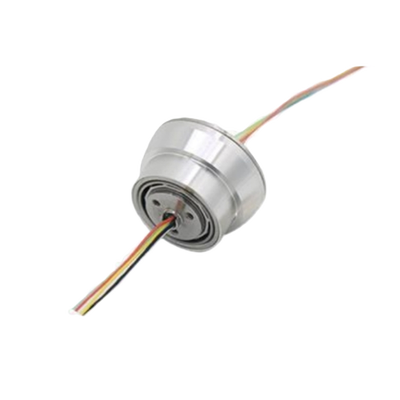

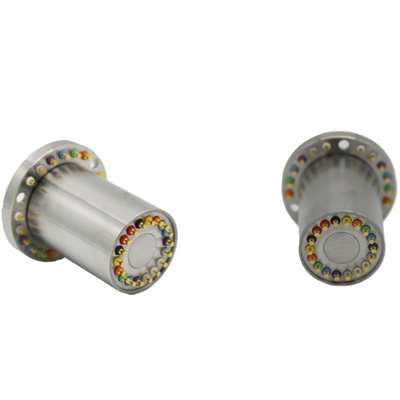

SP040028-G05 High Speed Slip Ring 24 Channels 18000 RPM Gold-Gold Contact IP65 for Automotive Wheel Hub Testing

1 Piece
MOQ
USD 250-450 / Piece
Price
SP040028-G05 High Speed Slip Ring 24 Channels 18000 RPM Gold-Gold Contact IP65 for Automotive Wheel Hub Testing
Features Gallery Product Description Chat Now
Features
Specifications
Number Of Channels: 24
Operating Speed: 18000 RPM
Rated Voltage: 80VDC
Rated Current: 1A
Contact Material: Gold-Gold
Ingress Protection: IP65
Housing Material: 304 Stainless Steel
Working Life: 100 Million Revolutions
Starting Torque: <2 N.cm
Concentricity: ≤0.01mm
Surface Finish: Ra0.02
Highlight:

24 Channel Automotive Slip Ring

,

18000 RPM Gold-Gold Contact

,

IP65 Wheel Hub Test Slip Ring
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: SPR
Certification: ISO 9001:2015, CE, RoHS
Model Number: SP040028-G05
Payment & Shipping Terms
Packaging Details: Anti-static bag with custom foam insert in export-grade corrugated carton
Delivery Time: 3 working days for sample, 10-20 days for bulk orders
Payment Terms: T/T, L/C, PayPal, Western Union
Supply Ability: 2500 Pieces per Month
Product Description

SP040028-G05 High Speed Slip Ring for Automotive Wheel Hub Testing

12-20-28 Channels High Speed Slip Ring Rated Voltage/Current and Integrated Pouring Process for 80VDC/1A

Product Attributes

AttributeValue
Precision Parts Manufacturing ProcessDimensional tolerance <0.01mm for high-precision components
Advanced Brush Filament Modulation ProcessInnovative brush design for extended lifespan
Compact DesignSmall size and compact structure for adaptability
Working Life100 million revolutions
High-Speed OperationOperates at 18000 rpm without cooling system
Rated Voltage/Current80VDC/1A
Contact MaterialGold-gold contact material
Ingress ProtectionIP65
Housing Material304 Stainless Steel
Integrated Pouring ProcessConcentricity between ring groove and bearing ≤0.01mm
Mirror Processing TechnologyContact surface finish Ra0.02 for reliable electrical contact
Number of Channels24

Application areas: Automotive wheel hub performance testing, brake disc temperature monitoring, tire pressure sensor data transmission, vehicle dynamics testing rotating platforms, automotive component durability test rigs.

Tag:

electrical slip ring

fast speed slip ring

metal slip ring
