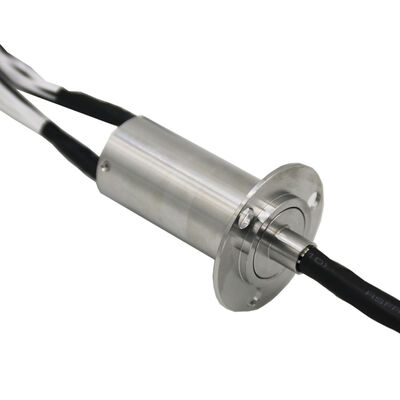

18000 RPM High Speed Slip Ring Gold-Gold Contact IP65 Flange Mount for Aircraft Engine Test Rigs

18000 RPM High Speed Slip Ring Gold-Gold Contact IP65 Flange Mount for Aircraft Engine Test Rigs

This 18,000 rpm slip ring is built for rotating test rigs where brush heat, dust and signal noise destroy measurement quality. Gold-gold contacts, an integrated pouring process and sub-0.01mm tolerances keep strain gauge and thermocouple signals clean through a full test campaign, with 90 hours of continuous running verified without any external cooling.

Key Features

• Gold-gold contact pair for low-voltage weak-current signal fidelity
• Integrated pouring process holding groove-to-bearing concentricity within 0.01mm
• Mirror lapped contact track at Ra0.02 for stable contact resistance
• Near-zero pressure brush modulation extending service life by about one third
• IP65 sealed stainless steel housing for dusty test cells
• 90 hours continuous operation at 18000 RPM with no forced cooling

Technical Specifications

Typical Applications

• Aircraft engine and turbine test stands
• High-speed rail component validation
• Automotive hub and drivetrain test rigs
• Rotating dynamometers

Ordering Information

Model SP040028-G06 is available from one piece with carton packaging and delivery in one to three weeks. Custom circuit counts, lead wire lengths, connector terminations and mounting flanges can be quoted on request. Send your drawing or specification and our engineering team will confirm the matching configuration within two working days.
