10000 RPM Miniature High Speed Slip Ring 12 Circuits Aluminum Alloy Shell for Robotic Joint Assembly

10000 RPM Miniature High Speed Slip Ring 12 Circuits Aluminum Alloy Shell for Robotic Joint Assembly

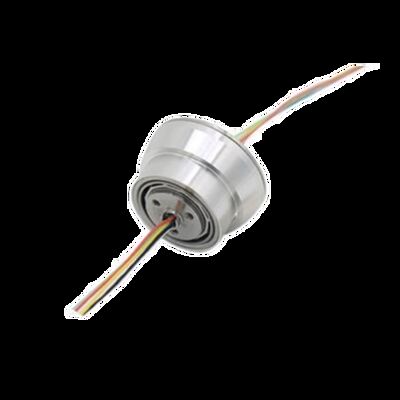

A 22 mm class miniature slip ring rated to 10,000 rpm with 12 independent circuits. The aluminum alloy shell keeps rotating mass low so joint motors see minimal inertia, while gold contacts and a precision bearing stack hold contact resistance within 10 mOhm across the full speed range.

Key Features

• 22 mm outer diameter fits tight joint envelopes
• Lightweight aluminum alloy shell reduces rotating inertia
• 12 independent circuits for power, encoder and sensor wiring
• Gold-gold contact pair for stable low-current signals
• Flange or shaft mount options for OEM integration
• Low starting torque keeps motor sizing small

Technical Specifications

Typical Applications

• Robotic arm joints and end effectors
• Camera gimbals and PTZ heads
• Medical device rotation stages
• Automated assembly stations

Ordering Information

Model SP025-G12 is available from one piece with carton packaging and delivery in one to three weeks. Custom circuit counts, lead wire lengths, connector terminations and mounting flanges can be quoted on request. Send your drawing or specification and our engineering team will confirm the matching configuration within two working days.
