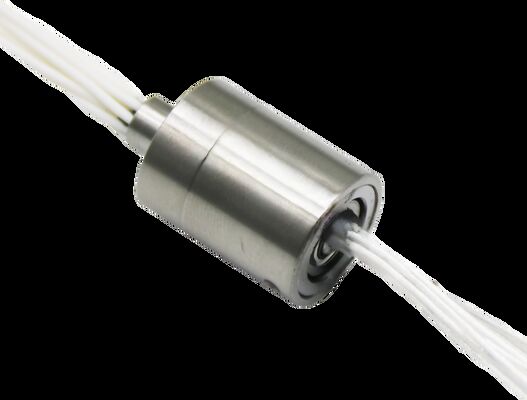

20000 RPM Compact High Speed Slip Ring 6 Circuits Shielded Low Noise Output for Strain Gauge Testing

20000 RPM Compact High Speed Slip Ring 6 Circuits Shielded Low Noise Output for Strain Gauge Testing

Shielded construction and gold-gold contacts keep electrical noise low enough for microvolt-level measurement at 20,000 rpm. Six circuits cover bridge excitation, signal return and thermocouple pairs, making this model a direct fit for rotating data acquisition on test benches.

Key Features

• Shielded housing suppresses EMI from adjacent drive motors
• Gold-gold contacts keep dynamic resistance fluctuation below 5 mOhm
• Six circuits sized for bridge excitation and thermocouple pairs
• Runs to 20000 RPM without forced air or liquid cooling
• Stainless steel body resists coolant mist and dust
• Optional thermocouple grade lead wire termination

Technical Specifications

Typical Applications

• Strain gauge telemetry on rotating shafts
• Thermocouple measurement in turbine testing
• Torque transducer signal transfer
• Component fatigue test benches

Ordering Information

Model SP040028-G06S is available from one piece with carton packaging and delivery in one to three weeks. Custom circuit counts, lead wire lengths, connector terminations and mounting flanges can be quoted on request. Send your drawing or specification and our engineering team will confirm the matching configuration within two working days.
