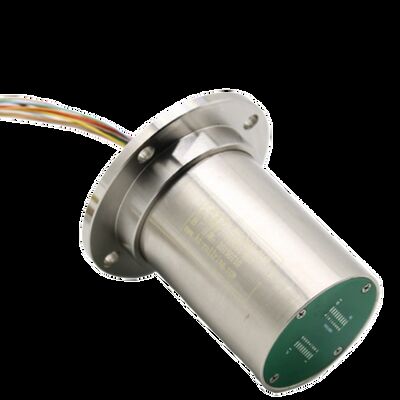

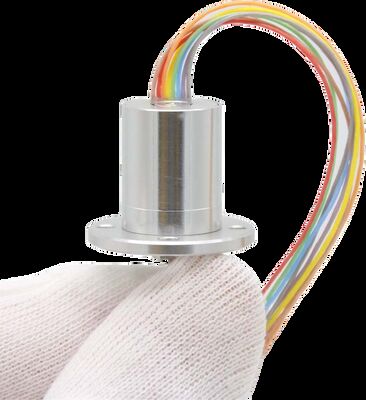

3000 RPM Hybrid High Speed Slip Ring Single Fiber Channel Plus 12 Power Circuits for Radar Turntables

3000 RPM Hybrid High Speed Slip Ring Single Fiber Channel Plus 12 Power Circuits for Radar Turntables

This hybrid unit passes one single-mode or multimode fiber channel alongside 12 electrical circuits in a single sealed housing, so radar heads can receive DC power and return digitized data through one rotary joint. The optical path is non-contact and immune to the EMI generated by the adjacent power rings.

Key Features

• Single housing for optical data and electrical power
• Non-contact optical coupling immune to EMI and ground loops
• 12 power circuits for motors, heaters and sensors
• Insertion loss held under 2.5 dB across rotation
• Sealed IP65 body for outdoor radar installations
• Custom fiber count and connector types available

Technical Specifications

Typical Applications

• Rotating radar and LiDAR platforms
• Surveillance and EO/IR turrets
• Wind turbine condition monitoring
• Broadcast camera pedestals

Ordering Information

Model SP030008-F1 is available from one piece with carton packaging and delivery in one to three weeks. Custom circuit counts, lead wire lengths, connector terminations and mounting flanges can be quoted on request. Send your drawing or specification and our engineering team will confirm the matching configuration within two working days.
