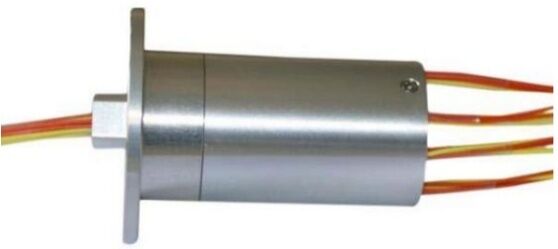

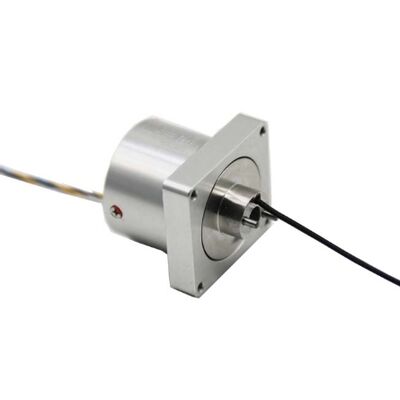

15000 RPM Long Life High Speed Slip Ring 24 Circuits IP65 Sealed for Continuous Dynamometer Duty

15000 RPM Long Life High Speed Slip Ring 24 Circuits IP65 Sealed for Continuous Dynamometer Duty

Built on the SP056060 platform, this 24-circuit unit is rated for 50 million revolutions at up to 15,000 rpm with no maintenance interval. Precious metal contacts and a sealed IP65 housing suit dynamometers and test cells that run around the clock.

Key Features

• 50 million revolution service life with no maintenance interval
• 24 circuits at 5 A for mixed power and control loads
• Precious metal contacts resist wear at continuous high speed
• Sealed IP65 stainless housing for coolant mist environments
• Stable dynamic resistance within 50 mOhm over full life
• Optional integrated temperature sensor for condition monitoring

Technical Specifications

Typical Applications

• Engine and motor dynamometers
• Transmission test benches
• Continuous production test lines
• End-of-line quality inspection rigs

Ordering Information

Model SP056060-H24 is available from one piece with carton packaging and delivery in one to three weeks. Custom circuit counts, lead wire lengths, connector terminations and mounting flanges can be quoted on request. Send your drawing or specification and our engineering team will confirm the matching configuration within two working days.
