Name: High Speed Gold Contact Slip Ring 2000-18000 RPM IP65
Brand: Shenzhen SPRing Technology Co.,Ltd
SKU: SP045028-G18
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Working Loops: 12-20-28 Channels Are Optional

Insulation Resistance: ≥110MΩ/250V/DC

Contact Material: Gold-gold

Rated Voltage/current: 80VDC/1A

Electrical Strength: ≥250VAC/50Hz/60s

Rated Speed: 2000-18000 Rpm

Working Life: 100 Million Revolutions

Highlight:

high speed slip ring 2000-18000 RPM

gold contact slip ring IP65

high speed slip ring with warranty

Basic Infomation

Place of Origin: Shenzhen

Brand Name: SPR-ing

Model Number: SP045028-G18

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 1~3 weeks

Payment Terms: L/C,T/T

Supply Ability: 1000/month

Gallery

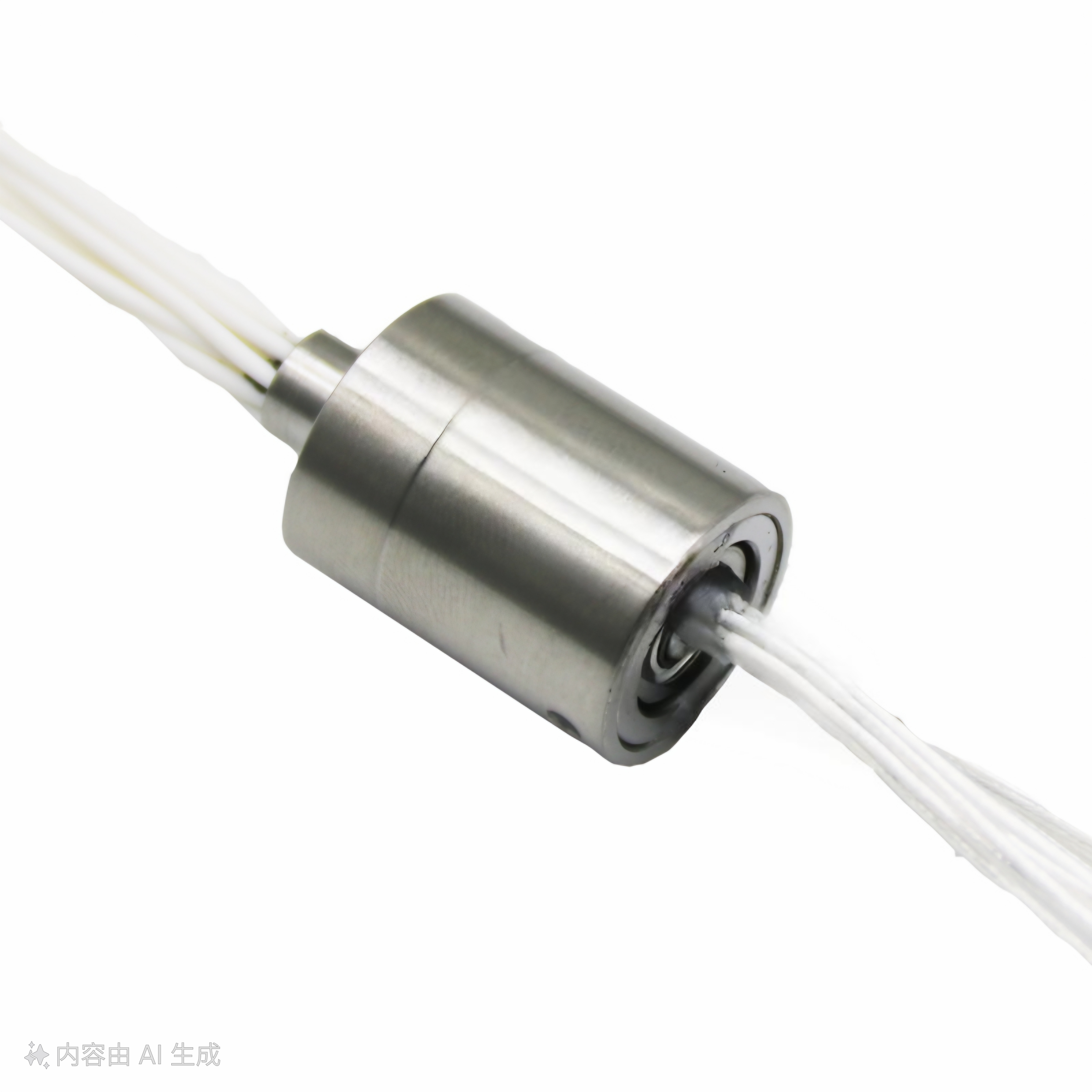

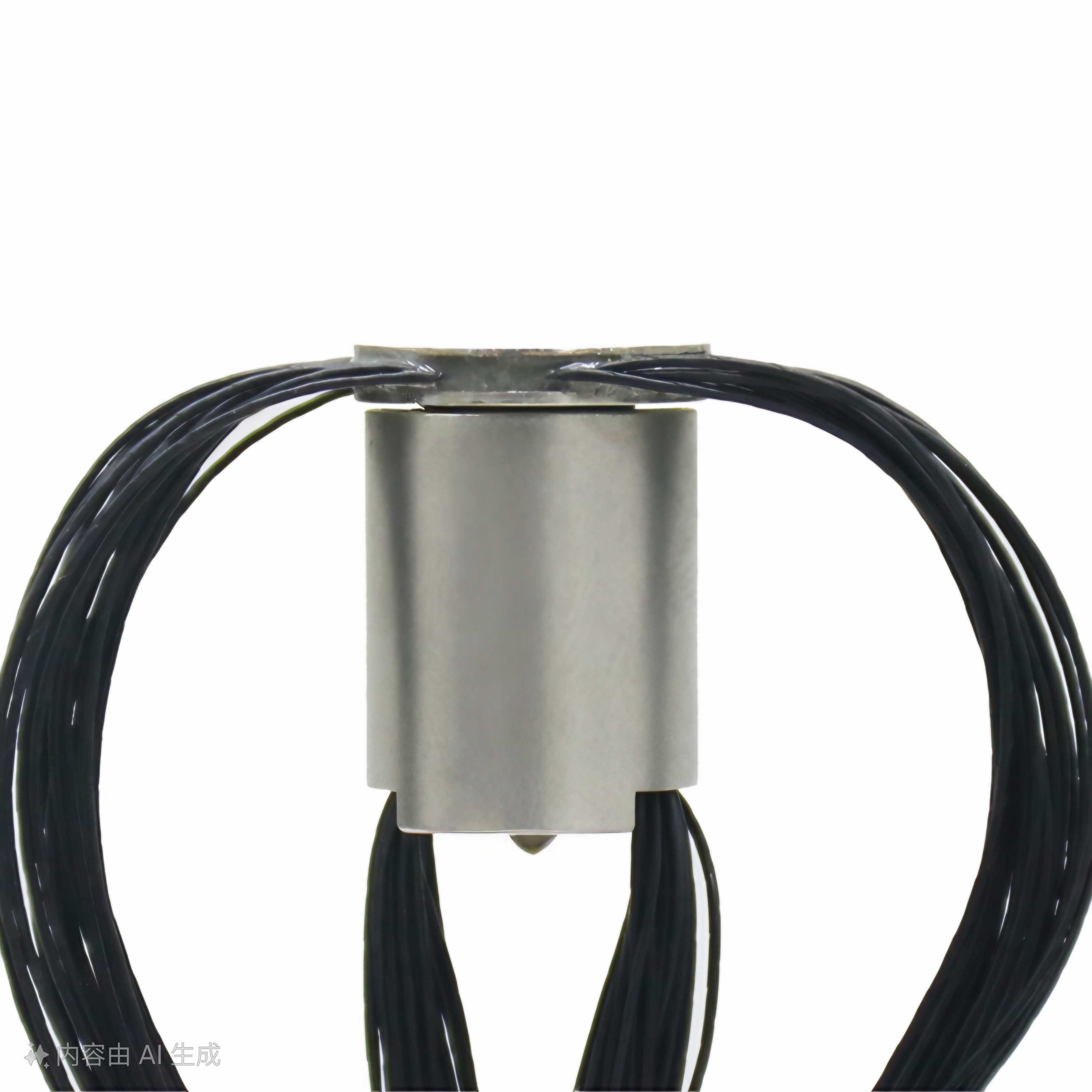

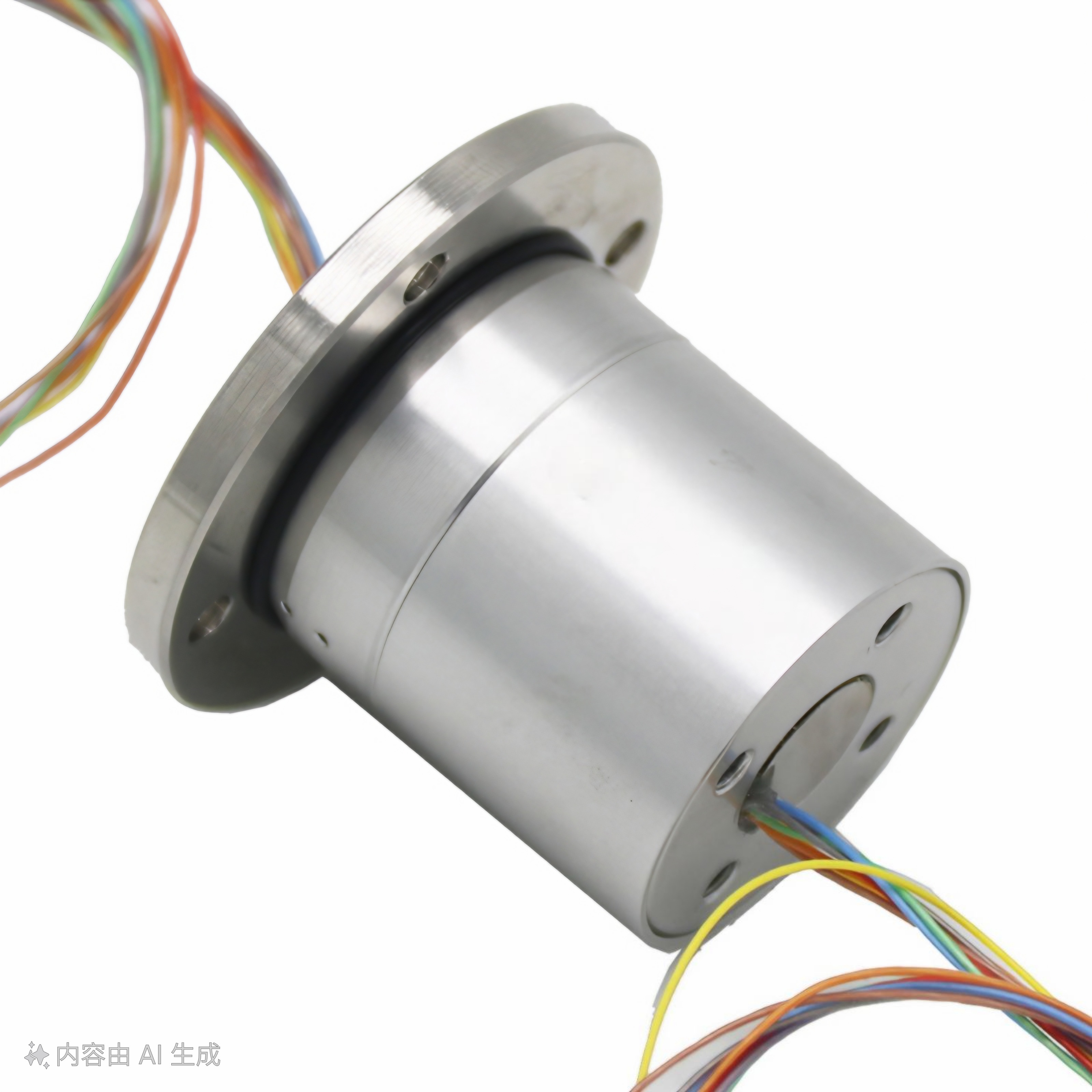

High Speed Gold Contact Slip Ring 2000-18000 RPM IP65

Product Description

High Speed Golden Contact Air Control Radar Slip Ring

Key Specifications

Attribute	Value
Working loops	12-20-28 channels are optional
Insulation resistance	≥110MΩ/250V/DC
Contact Material	Gold-gold
Rated voltage/current	80VDC/1A
Electrical strength	≥250VAC/50Hz/60s
Rated speed	2000-18000 rpm
Working life	100 million revolutions

Product Overview

This high-speed slip ring represents our company's core technology, featuring the latest innovations that eliminate the need for cooling devices. With wire outputs at both ends, it achieves maximum speeds of 18,000 rpm, adaptable to various operational requirements.

Technical Specifications

Electrical Parameters

Working loops	12-20-28 channels are optional
Insulation resistance	≥110MΩ/250V/DC
Rated voltage/current	80VDC/1A
Electrical strength	≥250VAC/50Hz/60s
Dynamic resistance change value	≤10mΩ
Wire length	Standard 600mm (customizable)

Mechanical Parameters

Rated speed	2000-18000 rpm
Working life	100 million revolutions
Operating temperature	-20℃～80℃
Operating humidity	25～95%RH
Contact material	Gold-gold
Housing material	304 stainless steel
Maximum starting torque	<2N.cm
Ingress protection	IP65

Technical Advantages

SPR-ing Core Friction Pair Technology: Gold-gold contacts ensure stable low-voltage signal transmission
Integrated Pouring Process: Maintains ≤0.01mm concentricity for enhanced precision
Mirror Processing Technology: Achieves Ra0.02 surface finish for reliable electrical contact
Precision Manufacturing: Components with <0.01mm dimensional tolerance
Advanced Brush Design: Near-zero pressure extends lifespan by 30%
Compact Structure: Adaptable to space-constrained applications
Robust 304 Stainless Steel Housing: Excellent sealing for harsh environments
High-Speed Operation: No cooling system required, up to 18,000 rpm
Continuous Operation: 90 hours at 18,000 rpm

Support & Services

Our technical support team provides comprehensive assistance for installation, operation, and troubleshooting. We offer maintenance, repair, and customization services to meet your specific requirements.

Packaging & Shipping

Packaging: Securely packed in compact protective boxes

Shipping: Processed within 1-2 business days with multiple shipping options

Frequently Asked Questions

Brand:

SPR-ing

Model Number:

SP025

Manufacturing Location:

Jiujiang

Minimum Order Quantity:

1 unit
