Custom High-Speed Slip Ring Manufacturer 60 Circuits OEM Service

1
MOQ
200-800USD
Price
Custom High-Speed Slip Ring Manufacturer 60 Circuits OEM Service
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 60
Insulation Resistance: 500MΩ/500V/DC
Rated Voltage/current: 500VDC/1A
Dielectric Strength: ≥500VAC/50Hz/60s
Dynamic Resistance Change Value: ≤50mΩ
Rated Speed: >15000 Rpm
Working Life: 50 Million Circle
Operating Temperature: -10℃ ~35℃
Highlight:

custom high-speed slip ring

,

60 circuits slip ring

,

long life slip ring OEM
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP056060-080-G15
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Custom High-Speed Slip Ring Manufacturer 60 Circuits OEM Service

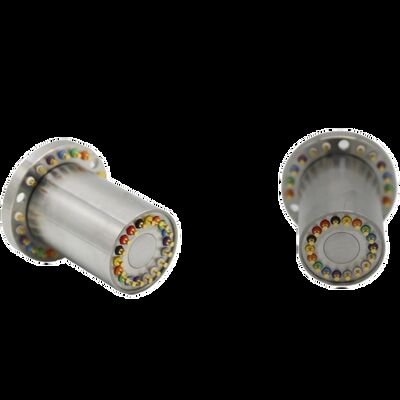

The SP056060 high-speed slip ring supports 60 circuits and operates over 15,000 RPM with gold-gold contacts. Long-life design ensures reliable signal and power transmission for aerospace, wind tunnel testing, industrial R&D, and high-speed rail applications.

Technical Specifications
Electrical Specifications
Design Loop 60
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 500VDC/1A
Dielectric Strength ≥500VAC/50Hz/60s
Dynamic Resistance Change Value ≤50mΩ
Mechanical Specifications
Rated Speed >15,000 RPM
Working Life 50 Million Rotations
Operating Temperature -10℃ to 35℃
Contact Material Gold-Gold
Shell Material Aluminum Alloy
Humidity 20% to 80%
Outline Drawing
Custom High-Speed Slip Ring Manufacturer 60 Circuits OEM Service 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Technical Advantages
  • Gold metal contact technology ensuring ultra-long service life
  • Integrated casting process with concentricity ≤ 0.01mm
  • Mirror processing technology with surface smoothness Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance <0.01mm
  • Advanced brush wire modulation with near-zero pressure design extending life by 1/3
  • Compact size and structure to meet space constraints
  • Solid aluminum alloy metal structure with strong sealing performance for harsh environments
  • High-speed capability tested up to 15,000 RPM
  • Long lifespan customizable up to 150 million rotations
