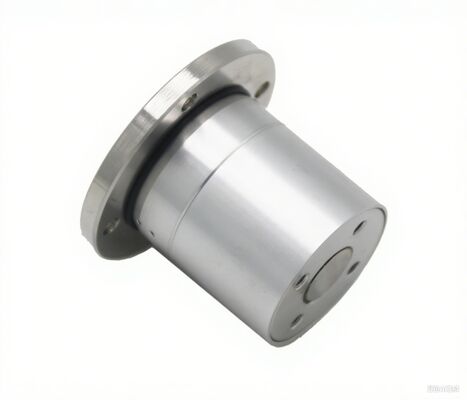

Electrical Slip Ring for Gimbal Systems 18 Circuits 5000 RPM for High-Speed Testing

Electrical Slip Ring for Gimbal Systems

The SP035018-A is a high-speed terminal slip ring engineered for reliable performance in continuous rotation systems. With 18 circuits and a rated speed of 5000 RPM, it supports stable power and signal transmission for demanding industrial applications.

Gold-gold contact technology minimizes electrical noise and wear, while the stainless steel housing provides excellent mechanical protection. Designed for a service life of up to 10 million revolutions, this slip ring is ideal for industrial automation, rotary machinery, and testing applications requiring high-speed operation.

Technical Specifications

Electrical Specifications

Mechanical Specifications

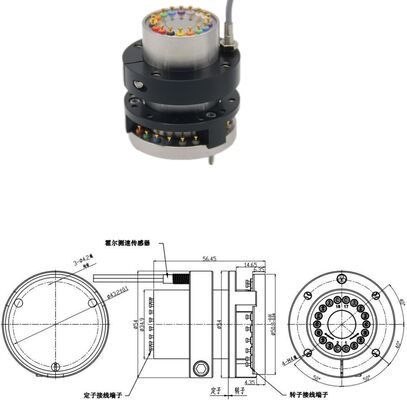

Outline Drawing

Technical Advantages

• Advanced Friction Pair Technology: Gold-gold contact technology ensures ultra-long service life and reliable performance
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for enhanced reliability
• Precision Component Manufacturing: Dimensional tolerance <0.01mm and axial displacement <0.01mm for high precision and stable performance
• Advanced Brush Wire Technology: Near-zero pressure brush design extends slip ring life by one-third
• Compact Design: Small size and compact structure meets tight space constraints
• Stainless Steel Construction: Durable and well-sealed for operation in extremely harsh environments

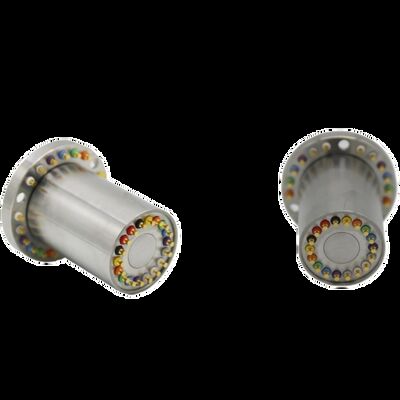

• Color-Coded Interface: Easy installation with clear identification system
