Professional Electrical Slip Ring Factory Long Life Design for Rotating System

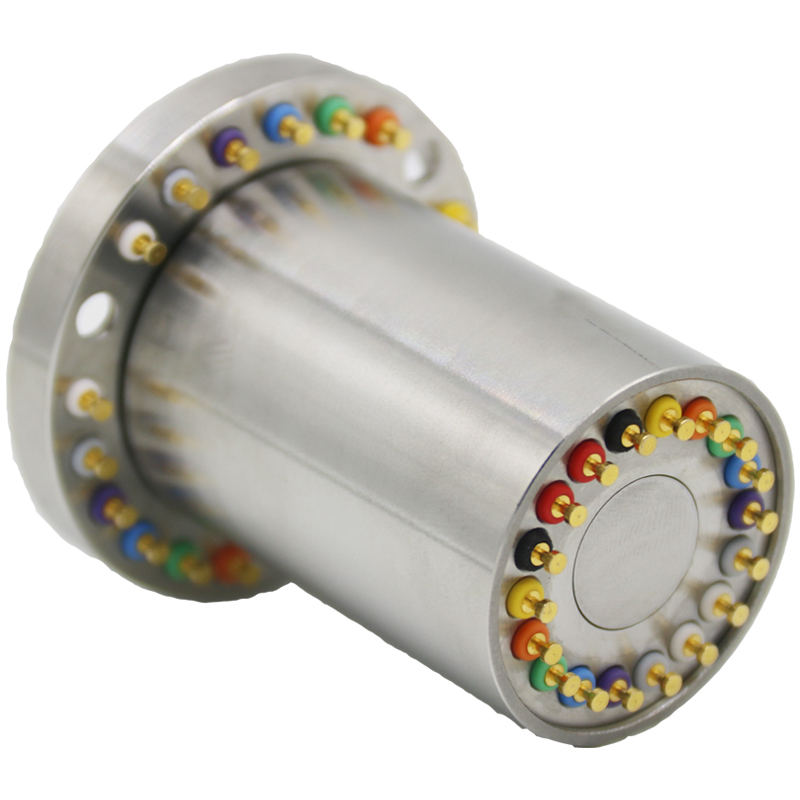

The SP035018-A terminal high-speed slip ring is engineered for straightforward installation and extended operational life. Its lead-wire-free terminal design with color-coded markings streamlines system integration and maintenance procedures. Supporting 18 circuits and rotational speeds up to 5000 RPM, this slip ring delivers consistent electrical performance with minimal dynamic resistance variation. Gold-gold contacts guarantee reliability during continuous rotation operations. This model is widely implemented in automation equipment, rotary tables, and industrial testing systems.

• Advanced friction pair technology with gold-gold contact system ensures exceptional service life
• Integrated casting process maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror processing technology achieves contact surface smoothness of Ra0.02 for enhanced reliability
• Precision component manufacturing with dimensional tolerance <0.01mm and axial displacement <0.01mm
• Advanced brush wire modulation technology with near-zero pressure design extends slip ring life by 1/3
• Compact size and streamlined structure accommodates space-constrained applications
• Stainless steel construction provides durability and strong sealing for harsh environments
• Color-coded interface identification simplifies installation and maintenance
