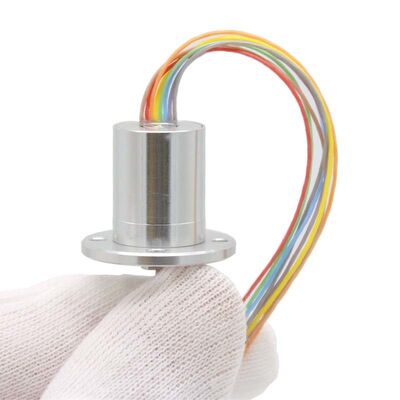

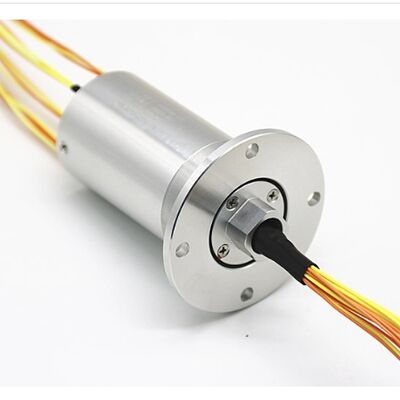

Drone Slip Ring 20 Circuits 3000 RPM Lightweight IP67 for UAV Aerial Photography Rotary Device

1
MOQ
200-800USD
Price
Drone Slip Ring 20 Circuits 3000 RPM Lightweight IP67 for UAV Aerial Photography Rotary Device
Features Gallery Product Description Chat Now
Features
Specifications
Rotating Speed: 0~3000 RPM
Design Loop: 20
Working Life: 10 Million~100 Million Circle
Dynamic Resistance Change: ≤10mΩ
Working Temperature: -40℃ To 60℃
Insulation Resistance: 200MΩ/250V/DC
Maximum Current: 1A
Shell Material: Alluminum Alloy/304 Stainless Steel/316L Stainless Steel
Highlight:

Drone slip ring 20 circuits 3000 RPM

,

UAV slip ring lightweight IP67

,

Aerial photography rotary device conductive slip ring
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP036020
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Drone Slip Ring 20 Circuits 3000 RPM Lightweight IP67 for UAV Aerial Photography

Direct from the manufacturer: The SP036020 is a 20-circuit electrical rotary joint built for speed and endurance. Features include Gold-Gold contacts, ≤10mΩ resistance change, and options for 304/316L Stainless Steel housing. We offer customization for wire lengths (Standard 300mm) and speed requirements (up to 8000 RPM). Perfect for OEMs needing reliable signal transfer in high-speed rotating equipment.

Technical Specifications
Electrical Specifications
Design Loop 20
Insulation Resistance 200MΩ/250V/DC
Rated Voltage/Current 250VDC/3A
Dielectric Strength ≥250VAC/50Hz/60s
Dynamic Resistance Change Value ≤10mΩ
Wire Length Standard 300 ± 20mm (optional)
Mechanical Specifications
Rated Speed 0~3000 rpm
Working Life 10 million~100 million rotations
Operating Temperature -45℃ ~ 60℃
Contact Material Gold-gold
Shell Material Aluminum alloy/304 stainless steel/316L stainless steel
Maximum Starting Torque 3.5N.cm
IP Grade IP51
Outline Drawing
Drone Slip Ring 20 Circuits 3000 RPM Lightweight IP67 for UAV Aerial Photography Rotary Device 0
Technical Advantages
  • Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
  • Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm
  • Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for reliable contact
  • Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
  • Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
  • High Speed Capability: Maximum speed of 8000 RPM (with cooling system)
  • Extended Lifespan: Maximum operational life of up to 100 million rotations
Customization Available: Contact us for custom wire lengths and specialized speed requirements to meet your specific application needs.
