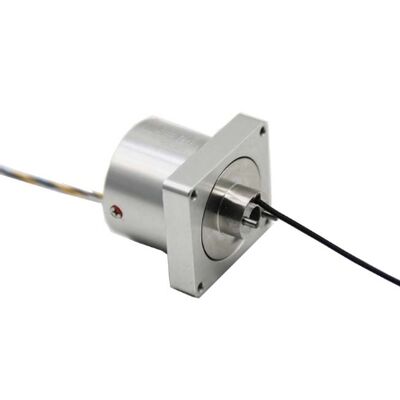

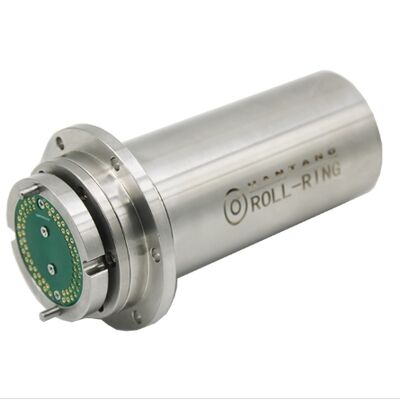

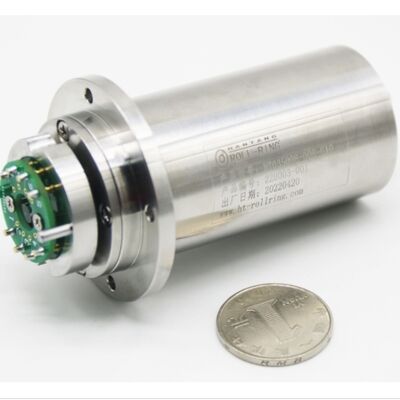

High-Speed Slip Ring 15000 RPM Gold-Gold Contact for Industrial Testing Platforms

1
MOQ
200-800USD
harga
High-Speed Slip Ring 15000 RPM Gold-Gold Contact for Industrial Testing Platforms
fitur Galeri Deskripsi Produk bicara sekarang
fitur
Spesifikasi
Lingkaran desain: 60
Resistensi Isolasi: 500mΩ/500V/DC
Tegangan/arus dinilai: 500VDC/1A
Kekuatan Dielektrik: ≥500VAC/50Hz/60 detik
Nilai perubahan resistensi dinamis: ≤50mΩ
Kecepatan terukur: >15000 rpm
Kehidupan kerja: 50 juta lingkaran
Suhu Operasional: -10℃ ~35℃
Menyoroti:

high-speed slip ring 15000 RPM

,

gold-gold contact slip ring

,

industrial testing platform slip ring
Informasi dasar
Tempat asal: SHENZHEN
Nama merek: SPR-ing
Nomor model: SP056060-080-G15
Syarat-syarat pembayaran & pengiriman
Kemasan rincian: Karton
Waktu pengiriman: 1 minggu
Syarat-syarat pembayaran: L/C,T/T
Menyediakan kemampuan: 1000/bulan
Deskripsi Produk
High-Speed Slip Ring 15000 RPM Gold-Gold Contact

Long-life high-speed slip ring with 60 channels, gold contacts, and stable operation at 15,000 RPM. Ideal for aerospace engine monitoring, wind tunnel experiments, rail system testing, and industrial R&D platforms. Custom OEM options available.

Technical Specifications
Electrical Specifications
Design loop 60
Insulation resistance 500MΩ/500V/DC
Rated voltage/current 500VDC/1A
Dielectric strength ≥500VAC/50Hz/60s
Dynamic resistance change value ≤50mΩ
Mechanical Specifications
Rated speed >15000 rpm
Working life 50 million circle
Operating temperature -10℃ ~35℃
Contact material Gold-gold
Shell material Aluminum alloy
Humidity 20%～80%
Outline Drawing
High-Speed Slip Ring 15000 RPM Gold-Gold Contact for Industrial Testing Platforms 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Technical Advantages

Friction Pair Technology: Gold metal contact technology ensuring ultra-long service life

Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm

Mirror Processing Technology: Contact surface smoothness Ra0.02 for reliable contact

Precision Manufacturing: Dimensional tolerance < 0.01mm for high precision and stability

Advanced Brush Technology: Near-zero pressure brush design extends life by 1/3

Compact Design: Small size and compact structure for space-constrained applications

Robust Construction: Solid aluminum alloy metal structure with strong sealing for harsh environments

High-Speed Performance: Tested and verified up to 15,000 revolutions per minute

Extended Lifespan: Customizable lifespan up to 150 million revolutions
