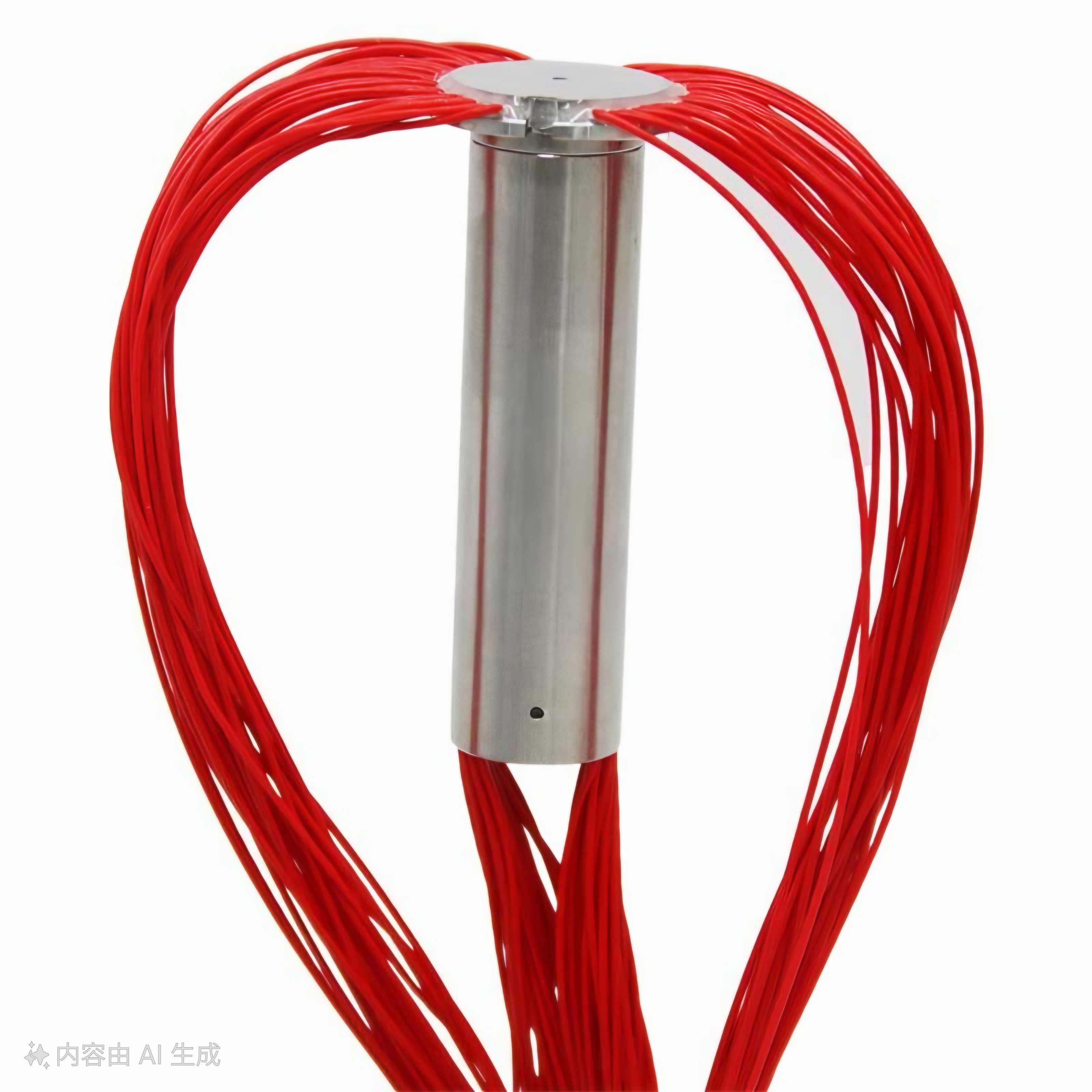

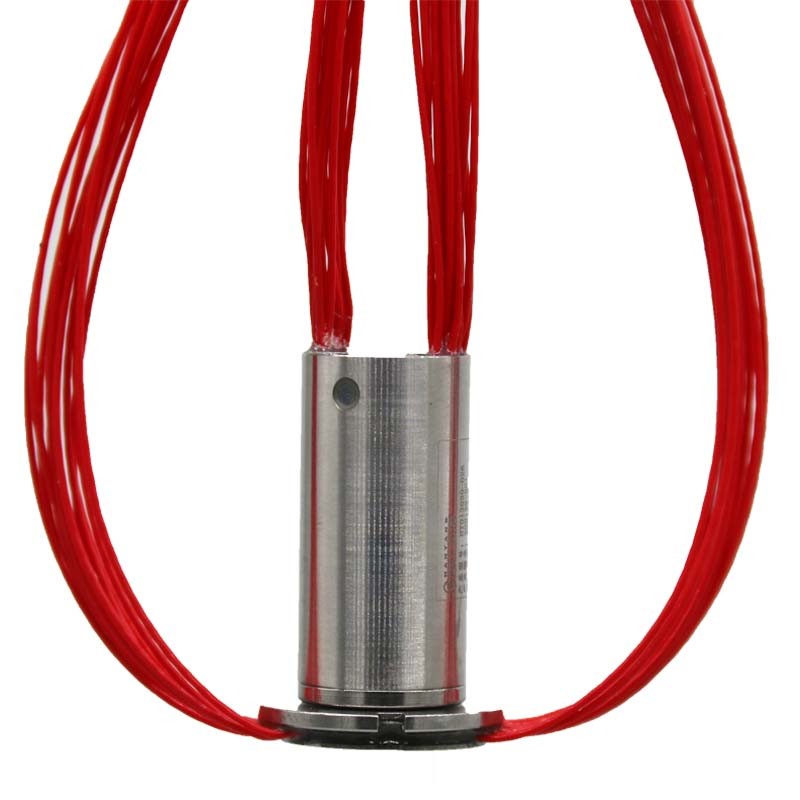

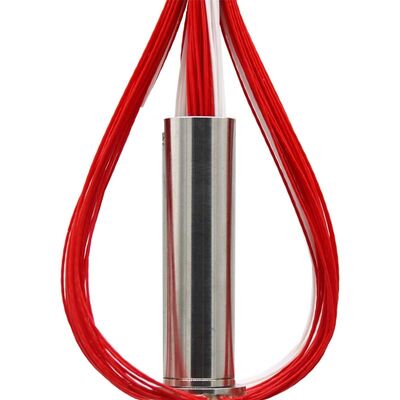

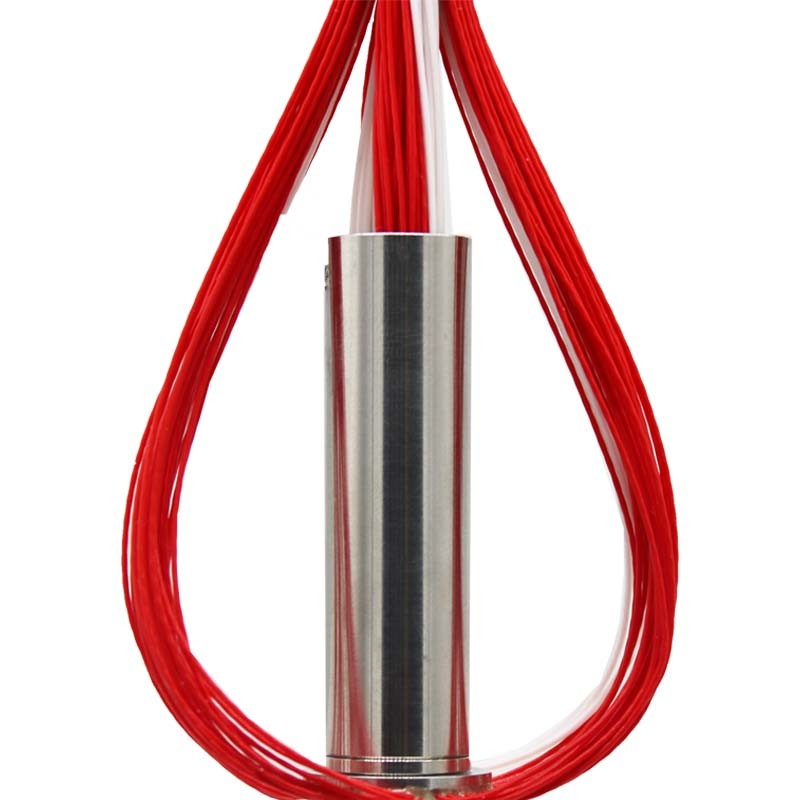

SP013028 High Speed Slip Ring Mini Rotary Joint Ring

SP013028 High Speed Slip Ring Mini Rotary Joint Ring

Product Overview

SP013028 series products are tailored for small space slip rings required by rotary systems, meeting the full performance conditions of launch, storage, and operation. The special manufacturing process ensures superior slip ring performance retention during long-term storage.

Technical Parameters

Technical advantages:

ü  Gold gold contact has high conductivity, good thermal conductivity, low temperature coefficient of resistance (with characteristics such as resistance to sulfurization, oxidation, and corrosive gases), and good hardness and wear resistance (with good resistance to welding, arc corrosion, and burns).

ü  Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü  Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü  Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable contact.

ü  The design and debugging process of the electric brush, which is close to zero pressure, has extended the life of the slip ring by 1/3.

ü  Small in size and compact in structure, it can meet the space constraints of users.

Key Applications

Ideal for high-speed signal transmission in:

• Aerospace: Aircraft engine testing (strain gauge & thermocouple signals)
• Rail Transit: High-speed rail component validation (350+ km/h simulations)
• Automotive: Wheel hub performance testing (torque & temperature monitoring)
• Industrial Robotics: Rotational joints in precision machinery

Physical Dimensions

• Diameter: 25.4mm
• Lead Wires: 400mm standard (custom lengths available)
• Mounting Holes: 4-M2.5 threaded holes (16±0.1mm pitch)

Factory Validation

• 100% burn-in tested at 120% rated speed
• Certified by ISO 9001:2015 quality system
• Dynamic resistance monitored for 72 hours post-production

Slip Ring Friction Pair Engineering Laboratory

• High-speed rotation (up to 20,000 RPM)
• Ultra-long service life (10+ million cycles)
• Harsh environments (corrosive, high-temperature)
• High-bandwidth data transmission applications

Technical Capabilities

1. Material Science Expertise
   • Develops gold-gold, silver-graphite, and composite metal alloy friction pairs
   • Performs tribological testing under dynamic loads (ASTM G99 standard)
2. Application-Specific Solutions

   Environment	Friction Pair Technology	Performance Metric
   High-speed	Electroplated gold-on-gold interface	<20mΩ resistance fluctuation
   High-temperature	Ceramic-reinforced metal composites	Operation up to 300℃
   Corrosive	PTFE-coated silver alloy contacts	1000+ hours salt fog resistance

3. Performance Optimization
   • Friction coefficient modeling for minimal wear
   • Electrical conductivity enhancement through surface nano-texturing
   • Dynamic contact resistance monitoring during rotational testing

Engineering Impact

• 33% extension in service life for wind turbine slip rings
• 50% reduction in signal loss for high-speed data transmission systems
• 80% improvement in corrosion resistance for marine applications

High-Speed Slip Ring Current Collector Test Facility

Technical Specifications

• Testing Capabilities:
  • Maximum rotational speed: 90,000 RPM (verified via ISO 17025 accredited procedures)
  • Peak output torque: 5.5 N·m with real-time load feedback
  • Multi-channel data acquisition (up to 18 channels simultaneously)
• Bench Configurations:

  Test Bench Type	Speed Range	Torque Capacity	Application Focus
  High-Speed Dynamic	10,000-90,000 RPM	1.2 N·m	Aerospace engine testing
  Torque Resistance	0-30,000 RPM	5.5 N·m	Heavy machinery joint evaluation
  Environmental Chamber	5,000-60,000 RPM	3.0 N·m	-50℃~80℃ temperature cycling

• Advanced Measurement Systems:
  • Non-contact eddy current sensors for real-time vibration analysis
  • High-precision resistance analyzers (resolution: 1μΩ)
  • Thermal imaging cameras for hotspot detection during operation

Research Support

• National key R&D projects (e.g., high-speed rail bogie testing)
• Collaborative initiatives with Fortune 500 aerospace manufacturers
• Academic studies on triboelectrification in ultra-rapid rotation systems

Assembly line
