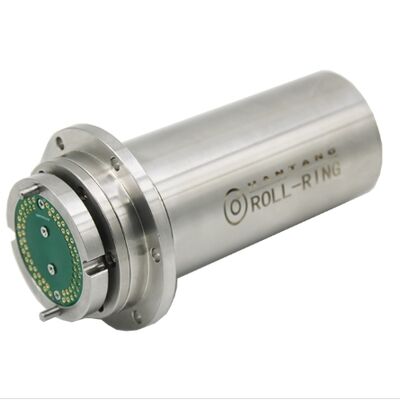

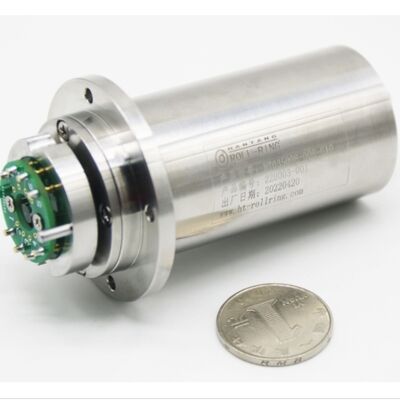

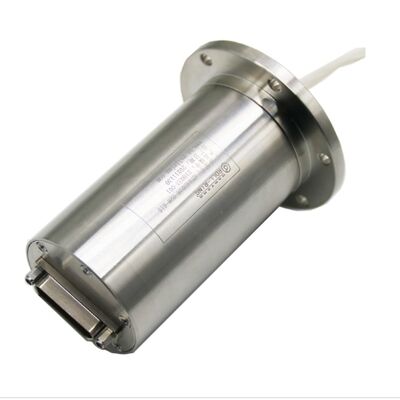

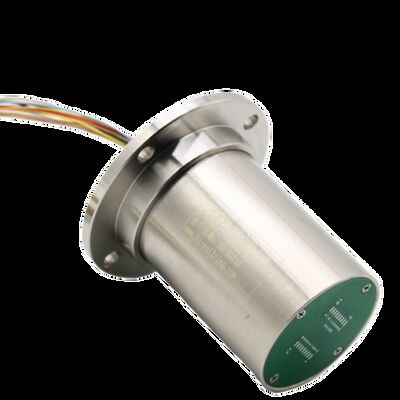

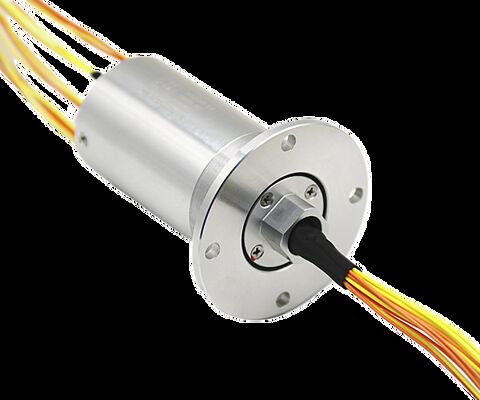

Waterproof IP65 Slip Ring Rotary Connector 500VDC Gold Contact for Surveillance Camera

1
MOQ
200-800USD
Price
Waterproof IP65 Slip Ring Rotary Connector 500VDC Gold Contact for Surveillance Camera
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 60
Insulation Resistance: 500MΩ/500V/DC
Rated Voltage/current: 500VDC/1A
Dielectric Strength: ≥500VAC/50Hz/60s
Dynamic Resistance Change Value: ≤50mΩ
Rated Speed: >15000 Rpm
Working Life: 50 Million Circle
Operating Temperature: -10℃ ~35℃
Highlight:

Waterproof slip ring for surveillance camera

,

IP65 rotary connector 500VDC

,

Gold contact slip ring long life
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP056060-080-G15
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
Waterproof IP65 Slip Ring Rotary Connector 500VDC Gold Contact for Surveillance Camera
Designed to exceed the limitations of conventional slip rings, this long-life model offers exceptional durability and speed performance. Engineered for applications where downtime is unacceptable and continuous high-speed rotation is required. Through optimized brush pressure, precision machining, and gold-gold contact technology, the slip ring achieves a working life of over 50 million revolutions.
Technical Specifications
Electrical Specifications
Design Loop 60
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 500VDC/1A
Dielectric Strength ≥500VAC/50Hz/60s
Dynamic Resistance Change Value ≤50mΩ
Mechanical Specifications
Rated Speed >15000 rpm
Working Life 50 million revolutions
Operating Temperature -10℃ ~ 35℃
Contact Material Gold-gold
Shell Material Aluminum alloy
Humidity 20% ~ 80%
Outline Drawing
Waterproof IP65 Slip Ring Rotary Connector 500VDC Gold Contact for Surveillance Camera 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Technical Advantages
  • Gold-gold contact technology ensuring ultra-long service life
  • Integrated casting process with concentricity ≤ 0.01mm
  • Mirror processing technology with surface smoothness Ra0.02 for reliable contact
  • Precision component manufacturing with dimensional tolerance < 0.01mm
  • Advanced brush wire modulation with near-zero pressure design
  • Compact structure suitable for space-constrained applications
  • Solid aluminum alloy construction with IP65 waterproof rating
  • High-speed capability tested up to 15,000 RPM
  • Long lifespan with customizable options up to 150 million revolutions
