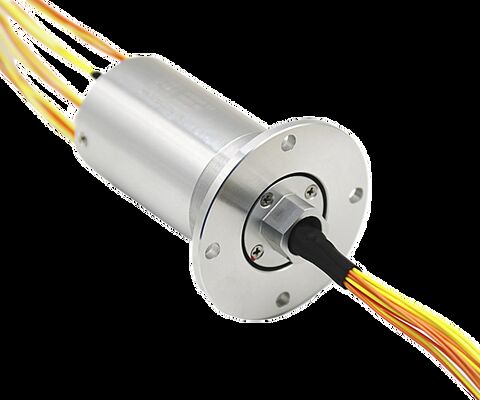

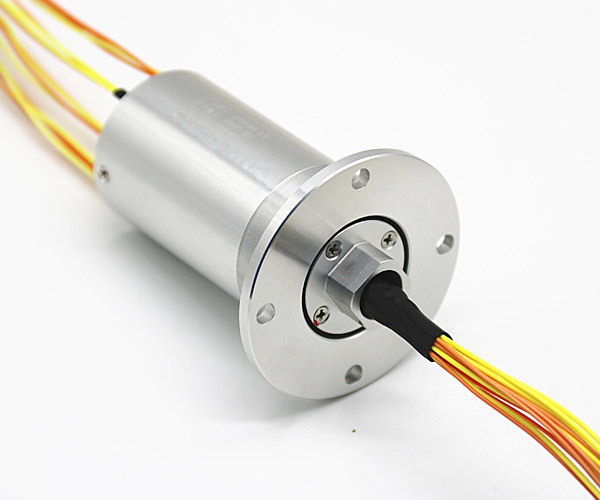

Turntable Fiber Optic Slip Ring with 100 Million Life 360° Free Rotating

Optimized for high-speed data acquisition, the SP036020 slip ring guarantees data integrity for strain gauges and sensors. With a low starting torque of 3.5N.cm and insulation resistance of 200MΩ, it provides smooth, interference-free rotation. This model supports standard speeds of 3000 RPM and custom high-speed options up to 8000 RPM, making it the industry standard for automotive wheel hub and aero-engine testing.

• Slip ring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life
• Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm
• Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable
• Precision component manufacturing process: dimensional tolerance <0.01mm, axial displacement <0.01mm, high precision, and more stable performance
• Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3
• High speed capability: This slip ring can reach a maximum speed of 8000 revolutions per minute (with cooling system)
• Extended lifespan: Maximum operational life of up to 100 million revolutions
