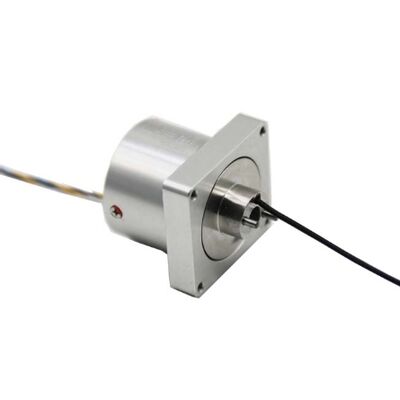

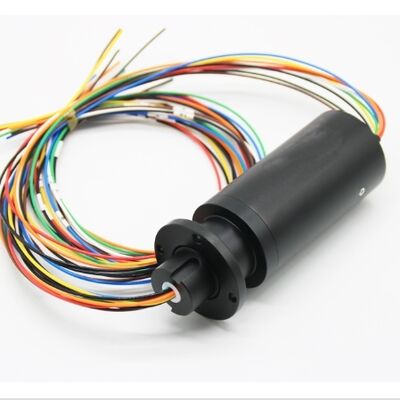

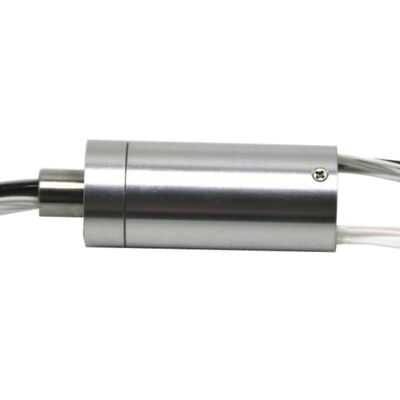

High RPM Robotic Arm Slip Ring 15000 RPM for Precision Data and Signal Transmission

1
MOQ
200-800USD
Price
High RPM Robotic Arm Slip Ring 15000 RPM for Precision Data and Signal Transmission
Features Gallery Product Description Chat Now
Features
Specifications
Design Loop: 60
Insulation Resistance: 500MΩ/500V/DC
Rated Voltage/current: 500VDC/1A
Dielectric Strength: ≥500VAC/50Hz/60s
Dynamic Resistance Change Value: ≤50mΩ
Rated Speed: >15000 Rpm
Working Life: 50 Million Circle
Operating Temperature: -10℃ ~35℃
Highlight:

High RPM robotic arm slip ring

,

15000 RPM slip ring for data transmission

,

Long life slip ring for precision signals
Basic Infomation
Place of Origin: Shenzhen
Brand Name: SPR-ing
Model Number: SP056060-080-G15
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 1 week
Payment Terms: L/C,T/T
Supply Ability: 1000/month
Product Description
High RPM Robotic Arm Slip Ring 15000 RPM
Designed for precision data and signal transmission in aerospace, rail transit, and industrial high-speed testing applications.
Product Overview
The SP056060-080-G15 high-speed slip ring operates at 15,000+ RPM and provides reliable transmission across 60 circuits during continuous rotation. Gold-gold contact technology ensures stable electrical performance and long service life, while the aluminum alloy housing offers robust protection against vibration and heat.
Technical Specifications
Electrical Specifications
Design Loop 60
Insulation Resistance 500MΩ/500V/DC
Rated Voltage/Current 500VDC/1A
Dielectric Strength ≥500VAC/50Hz/60s
Dynamic Resistance Change Value ≤50mΩ
Mechanical Specifications
Rated Speed >15000 rpm
Working Life 50 million circles
Operating Temperature -10℃ ~35℃
Contact Material Gold-gold
Shell Material Aluminum Alloy
Humidity 20%～80%
Outline Drawing
High RPM Robotic Arm Slip Ring 15000 RPM for Precision Data and Signal Transmission 0
Applications
  • High-speed testing platforms for aircraft engines
  • Automotive wheel hub performance and drivetrain testing
  • High-speed rail component testing
  • Strain gauge and thermocouple signal acquisition
  • Robotics and UAV payloads
  • Laboratory and industrial precision measurement systems
Technical Advantages
  • Gold-gold contact technology for ultra-long service life
  • Integrated casting process with concentricity ≤ 0.01mm
  • Mirror processing technology with surface smoothness Ra0.02
  • Precision component manufacturing with dimensional tolerance <0.01mm
  • Advanced brush wire modulation with near-zero pressure design
  • Compact structure suitable for space-constrained applications
  • Solid aluminum alloy construction for harsh environments
  • High-speed operation up to 15,000 RPM
  • Long lifespan with customizable options up to 150 million revolutions
