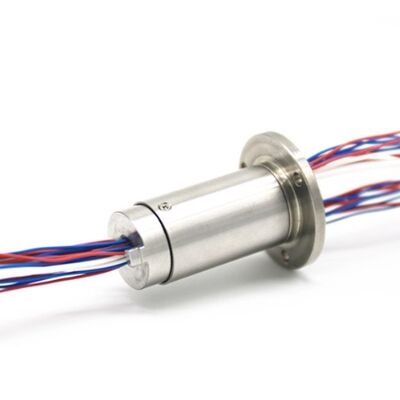

Industrial Automation Slip Ring Power & Signal Rotary Connector

Industrial Automation Slip Ring Power & Signal Rotary Connector

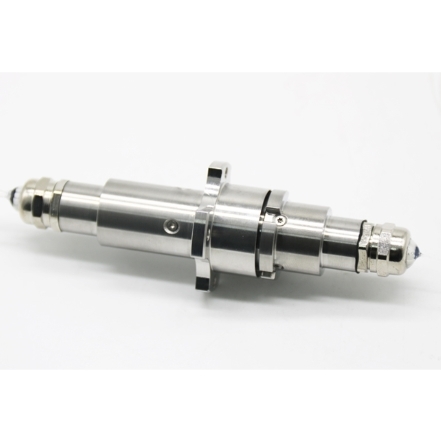

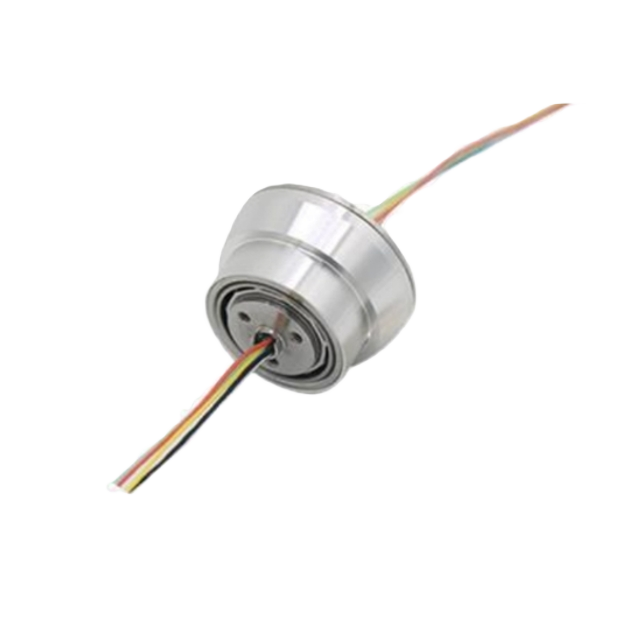

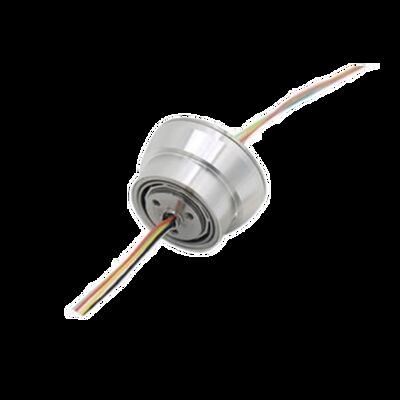

SP013018 Long Life High Speed Slip Ring
This miniature high-speed long-life slip ring operates at speeds up to 10,000 RPM with a lifespan of 10 million revolutions, delivering exceptional performance stability. As a core technology in our product line, this high-speed slip ring has been extensively deployed in critical applications and has undergone thorough user validation, confirming its reliable performance and extended service life.

Application Areas

Ideal for high-speed testing platforms requiring strain gauge signals, thermocouple signals, and similar applications including:

• Aircraft engine testing
• High-speed rail component testing
• Automotive wheel hub performance testing

Technical Parameters

Electrical Specifications

Mechanical Specifications

Outline Drawing

Technical Advantages

• Core Friction Pair Technology: Gold-to-gold metal contact technology ensures ultra-long service life
• Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
• Mirror Processing Technology: Achieves contact surface smoothness of Ra0.02 for enhanced reliability
• Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm for high precision and stability
• Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
• High Speed Capability: Maximum operating speed of 8,000 RPM with cooling system
• Extended Lifespan: Maximum operational life up to 100 million revolutions
