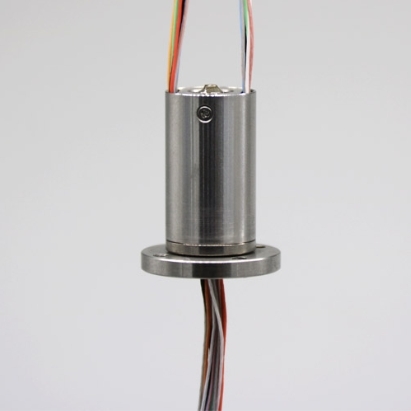

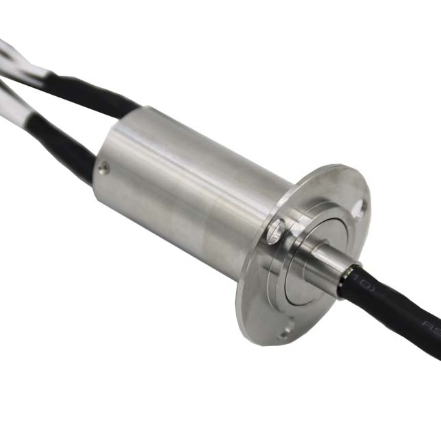

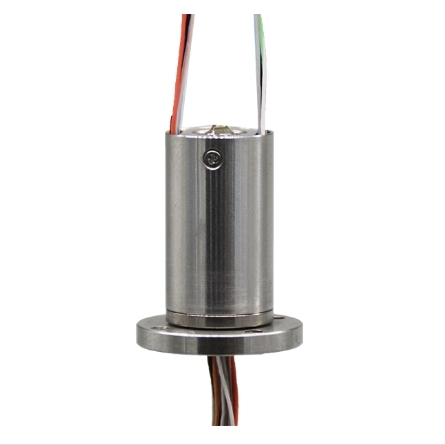

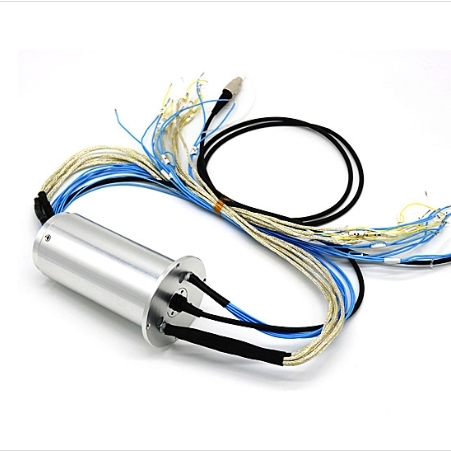

Engineered for demanding high-speed applications with a rated voltage/current of 80VDC/1A. Features continuous operation capability of 90 hours at 18000 rpm, making it ideal for long-duration industrial tasks requiring consistent performance.
| Attribute | Value |
|---|---|
| Mirror Processing Technology | Contact surface finish Ra0.02 for reliable electrical contact |
| Advanced Brush Filament Modulation Process | Innovative brush design for extended lifespan |
| Precision Parts Manufacturing Process | Dimensional tolerance <0.01mm for high-precision components |
| Electrical Strength | ≥250VAC/50Hz/60s |
| Ingress Protection | IP65 for protection against harsh environments |
| Rated Speed | 2000-18000 Rpm |
| Continuous Operation Capability | Operates continuously for 90 hours at 18000 rpm |
| Integrated Pouring Process | Concentricity between ring groove and bearing ≤0.01mm |
| Parameter | Specification |
|---|---|
| Core Friction Pair Technology | Gold-gold contact technology for low-voltage weak current signals |
| Working Loops | 12-20-28 Channels Are Optional |
| High-Speed Operation | 18000 rpm without cooling system |
| Working Life | 100 Million Revolutions |
| Rated Voltage/current | 80VDC/1A |
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
